EE18P Cabin Mini Excavator
Operation weight: 1800Kg
Bucket capacity: 0.04cbm
Rated power: 10.2/11.8/18.8Kw

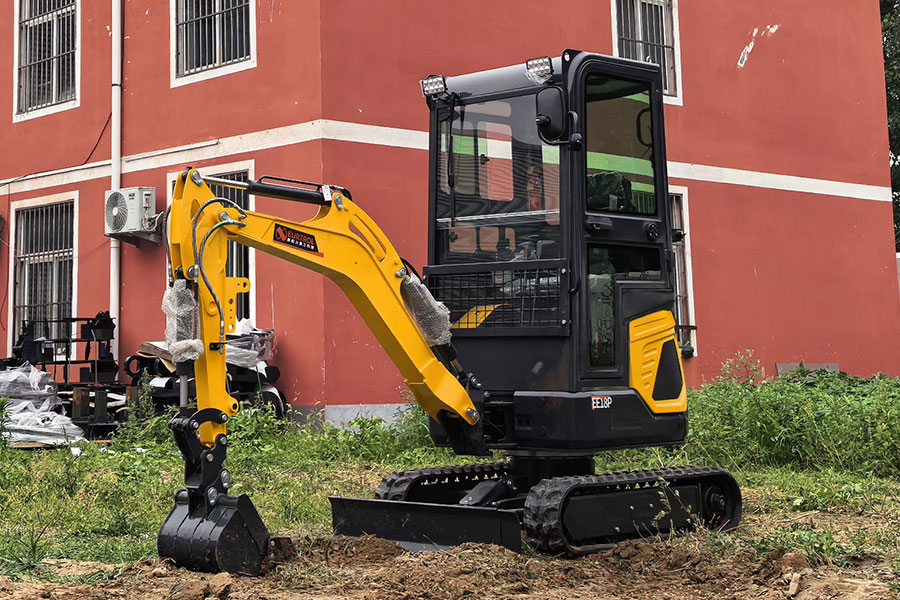

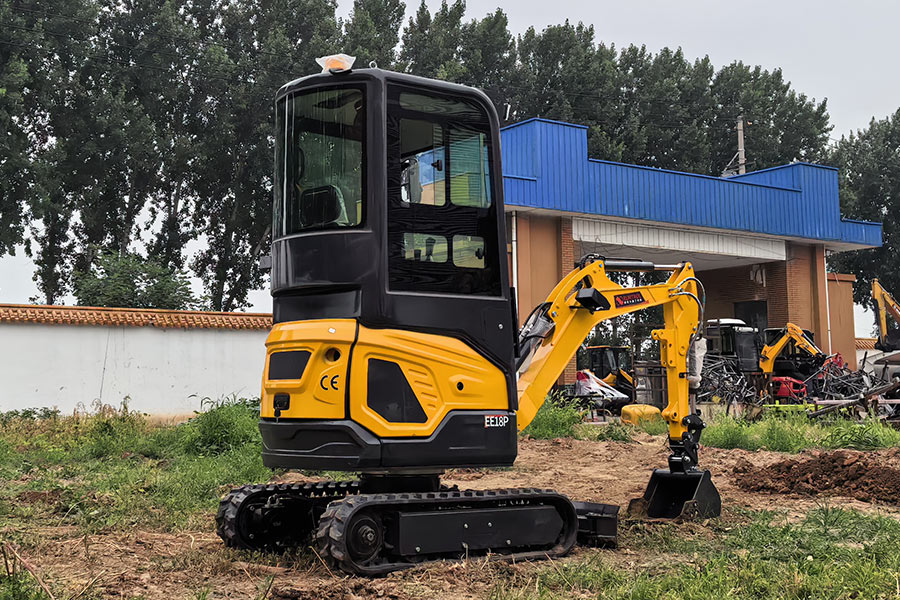

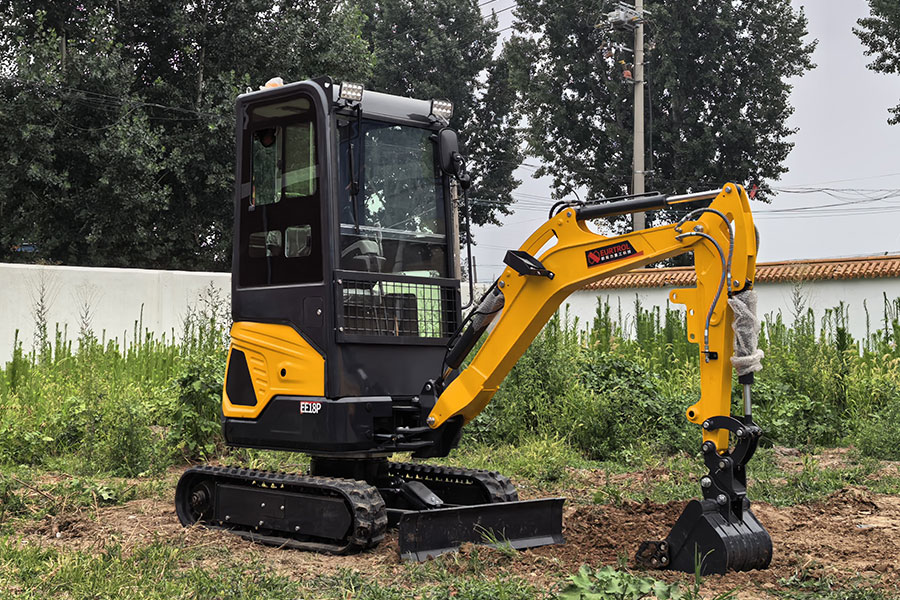

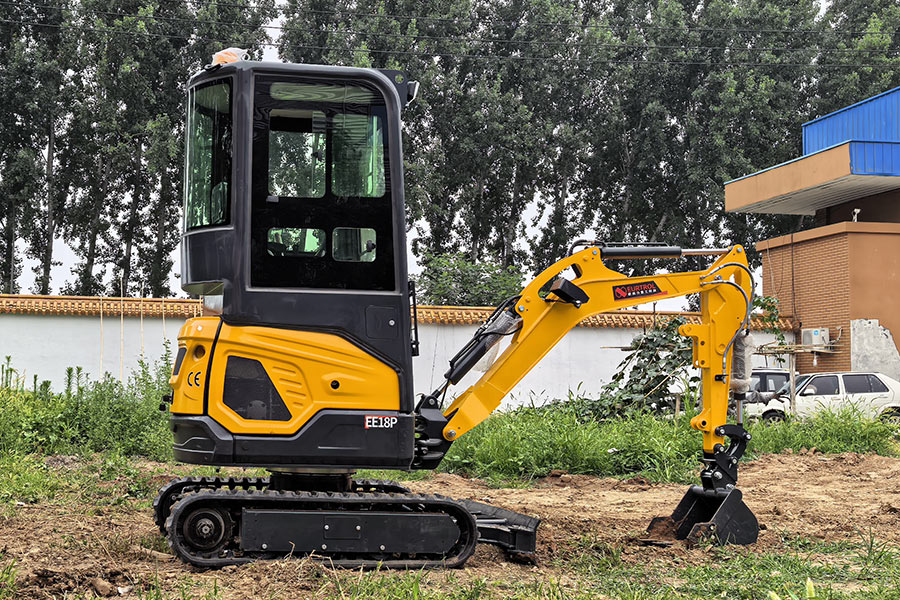

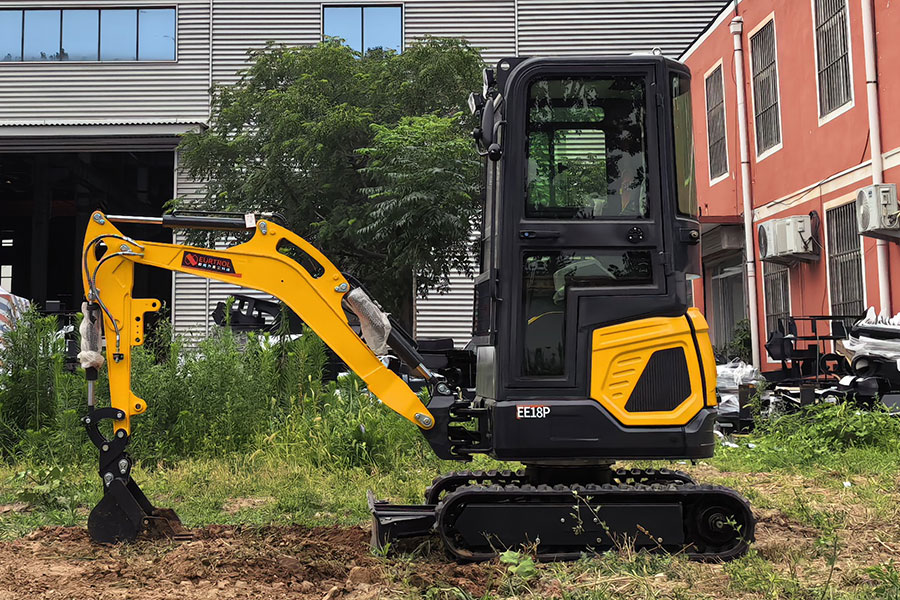

EE18P Enclosed Cab Mini Excavator | 1.8-Ton Pro Digger & 2,060mm Deep Dig
1,800kg Operating Mass | Factory Sealed Weatherproof Cab | 2,060mm Extended Dig Depth | 1,500mm Long Track Base | Kubota / Laidong 3-Cyl Diesel
Why Commercial Contractors Choose the EE18P Full Cab Excavator
- All-Weather Factory-Sealed Operator Cabin: Engineered with a fully glazed climate-ready operator cabin, the EE18P isolates workers from heavy rainfall, freezing winter conditions, worksite dust, and acoustic fatigue—guaranteeing year-round contractor productivity across demanding multi-hour shifts.
- Extended 2,060mm Trenching Reach & Long-Track Footprint: Upgraded with an elongated 1,500 mm track chassis and 1,230 mm wheelbase, the EE18P delivers a deep 2,060 mm vertical digging capability while dropping ground pressure to an ultra-light 28 kPa for superior anti-pitch stability on soft grade.
- Tier-1 3-Cylinder Water-Cooled Diesel Power: Configured exclusively with smooth-running 3-cylinder liquid-cooled powerplants. Choose globally proven Kubota diesels (D722 & D902, EPA Tier 4 / Euro 5 compliant) for worldwide parts availability, or high-displacement Laidong LL385 engines delivering up to 29 kW and 92 N·m torque for extreme industrial lugging.
- High-Output 30 L/min Hydraulic Core with 9-Way Valve: Powered by a durable 20 MPa hydraulic system delivering 30 L/min pump flow managed through an advanced 9-way multi-function spool valve, ensuring ultra-smooth simultaneous boom/arm/swing movements and high auxiliary flow to drive breakers and augers without hydraulic fade.
| Model | EE18P (Enclosed Cab Edition) |
| Operating Weight | 1800 kg (1.8 Ton) |
| Cabin Configuration | Fully Enclosed Weather-Shield Operator Cabin |
| Chassis Overall Width / Track Length | 1100 mm / 1500 mm (Long Wheelbase) |
| Bucket Capacity / Breakout Force | 0.04 m³ / 10 kN |
| Engine Configurations | Kubota D722 / D902 / Laidong LL385 (All 3-Cylinder Diesel) |
| Max. Digging Depth | 2060 mm (2.06 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1800 kg |
| Cabin Type | Fully Enclosed Weatherproof Cab |
| Bucket Capacity | 0.04 m³ |
| Fuel Tank Capacity | 9.5 L |
| Engine | |
| Engine Model | a. LAIDONG LL385 (China Stage II) b. LAIDONG LL385 (EURO 5) c. KUBOTA D722 (EURO 5 / EPA 4) d. KUBOTA D902 (EURO 5 / EPA 4) |
| Displacement | a 1.617, b 1.617, c 0.719, d 0.898 L |
| Rated Power / Speed | a 29/2200, b 18.8/2400, c 10.2/2500, d 11.8/2300 kw/rpm |
| Max. Torque | a 92/2000, b 92/2000, c 51.3/1800, d 51.3/1800 N.m/rpm |
| Engine Oil Capacity | a 4.0, b 4.0, c 3.7, d 3.7 L |
| Engine Type | a Diesel, 3-Cylinder, Water Cooling b Diesel, 3-Cylinder, Water Cooling c Diesel, 3-Cylinder, Water Cooling d Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 3.0 km/h |
| Rotating Speed | 10 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 10 kN |
| Bucket Arm Digging Force | 6 kN |
| Max. Traction Force | 16 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 200*72*42 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 28 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 20 MPa |
| Hydraulic Flow | 30 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Nine-way Valve |
| Hydraulic Oil Tank Capacity | 18 L |
| Main Dimensions | |
| A. Overall Length | 3230 mm |
| B. Track Length | 1500 mm |
| C. Height to Boom Top | 1190 mm |
| D. Chassis Width | 1100 mm |
| E. Overall Height | 2400 mm |
| F. Ground Clearance | 450 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 770 mm |
| I. Wheel Base | 1230 mm |
| J. Track Width | 200 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 370 mm |
| Operating Range | |
| 1. Max. Digging Height | 3030 mm |
| 2. Max. Dumping Height | 2080 mm |
| 3. Max. Digging Depth | 2060 mm |
| 4. Max. Digging Radius on Ground | 3260 mm |
| 5. Min. Turning Radius | 1500 mm |
| 6. Dozer Blade Max. Lifting Height | 160 mm |
| 7. Dozer Blade Max. Lowering Depth | 220 mm |
| 8. Max. Digging Radius | 3160 mm |
| 9. Max. Vertical Digging Depth | 1940 mm |
| RS. Boom Right Swing Offset | 360 mm |
| LS. Boom Left Swing Offset | 360 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ Deep 2.06m Foundation Trenching Reach: Reaches 2,060 mm vertically down with 10 kN breakout force, effortlessly clearing deep residential utility connections and drainage pipes in fewer machine setups.
✔ Extended 1,500mm Track Stance Stability: The elongated undercarriage and 1,230 mm wheelbase disperse operating mass down to just 28 kPa ground pressure, providing rock-solid balance when swinging heavy loads on soft clay.
✔ 3-Cylinder Liquid-Cooled Diesel Endurance: Multi-cylinder diesel options maintain stable thermal control, smooth low-vibration operation, and heavy low-rpm torque reserves through long summer earthmoving shifts.
✔ Trailer-Optimized 3.23m Transport Length: Measuring just 3,230 mm bumper-to-blade, the EE18P ties down cleanly on tandem-axle plant trailers alongside attachments without exceeding transport weight thresholds.
