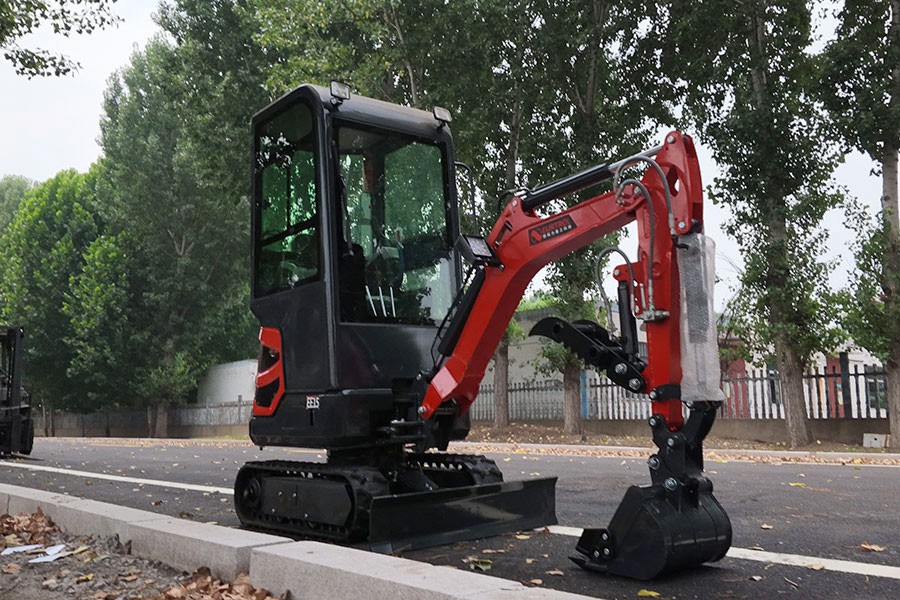

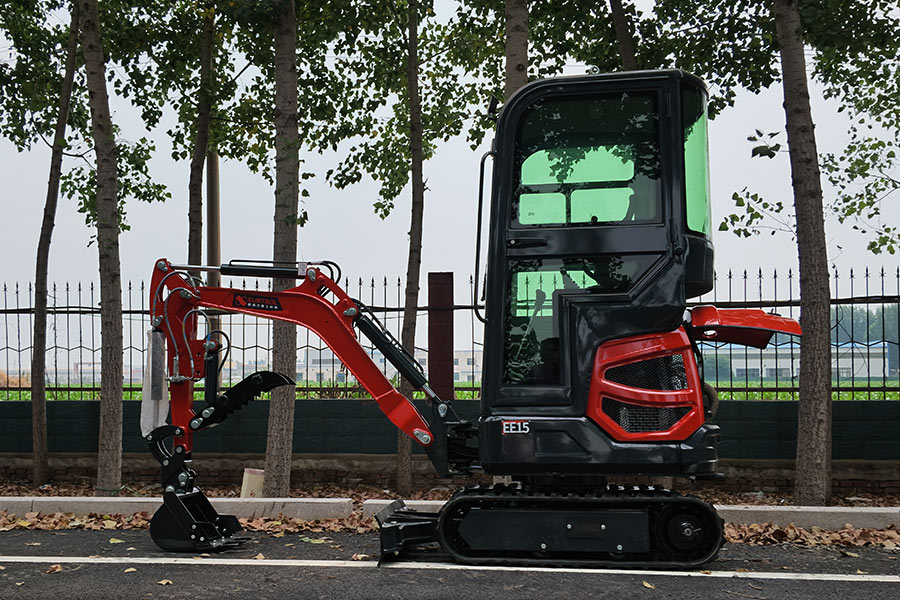

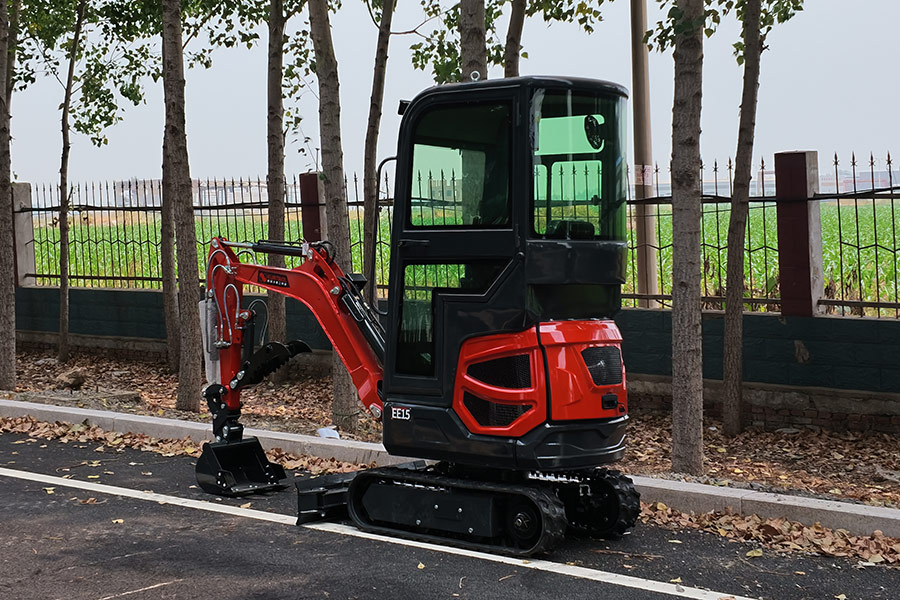

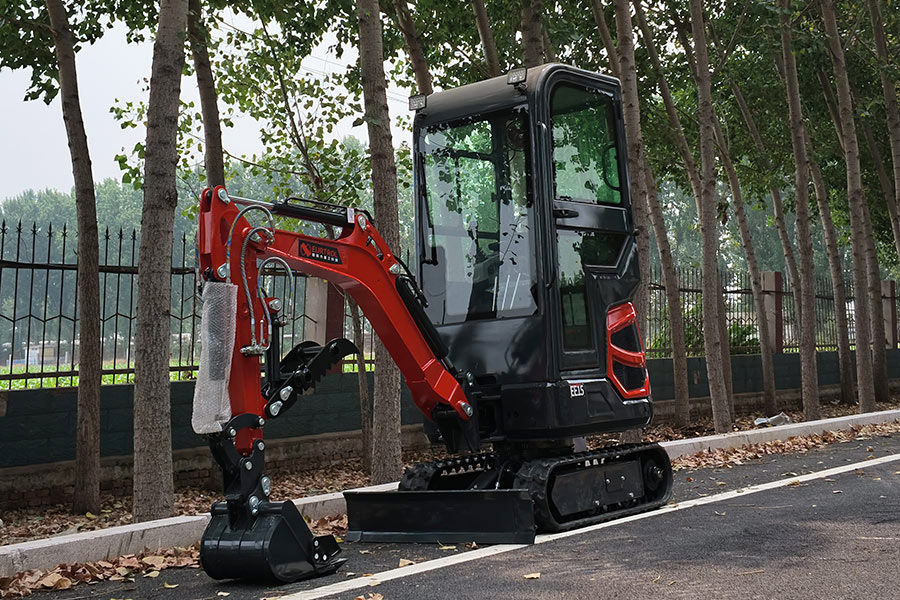

EE15 Cabin Mini Excavator
Operation weight: 1500Kg
Bucket capacity: 0.025cbm
Rated power: 7/7.6/10.2Kw
EE15 Enclosed Cab Mini Excavator | 1.5-Ton All-Weather Digger & Kubota D722 Diesel Power
1,500kg Operating Mass | Factory Sealed Weatherproof Cab | 950mm Ultra-Slim Stance | 1,800mm Dig Depth | Kubota D722 3-Cyl / KOOP Diesel
Why Groundwork Contractors & Fleets Choose the EE15 Full Cab Digger
- All-Weather Factory-Sealed Operator Cabin: Engineered with a fully enclosed climate-ready cabin, the EE15 provides complete protection against freezing winter cold, rainstorms, worksite dust, and fatigue-inducing engine noise—ensuring uninterrupted contractor productivity across full 8-hour daily shifts.
- Sub-1-Meter Access Profile (950mm Chassis Width): Measuring just 950 mm wide across its track base, the EE15 combines the substantial tearing force of a 1.5-ton machine with the agility of a micro-digger, passing through narrow residential garden gates and confined boundary corridors effortlessly.
- Premium Kubota D722 3-Cylinder Diesel Option: In addition to economical KOOP single-cylinder powerplants, the EE15 accommodates the globally renowned Kubota D722 liquid-cooled 3-cylinder diesel (EPA 4 / Euro 5, 10.2 kW @ 2500 rpm, 51.3 N·m torque) for ultra-smooth vibration damping, thermal endurance, and worldwide parts availability.
- High-Output 20 MPa Hydraulics with 9-Way Control: Driven by a heavy-duty hydraulic gear pump delivering 24 L/min at 20 MPa through an advanced 9-way multi-spool valve block, providing smooth simultaneous boom/arm/slew movements and high flow reserve for continuous hydraulic breaker and auger operations.
| Model | EE15 (Enclosed Cab Edition) |
| Operating Weight | 1500 kg (1.5 Ton) |
| Cabin Configuration | Fully Enclosed Weather-Shield Operator Cabin |
| Chassis Overall Width | 950 mm (Sub-1-Meter Footprint) |
| Engine Options | Kubota D722 (3-Cylinder Water-Cooled) / KOOP KD192FE |
| Max. Digging Depth | 1800 mm (1.8 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1500 kg |
| Cabin Type | Fully Enclosed Weatherproof Cab |
| Bucket Capacity | 0.025 m³ |
| Fuel Tank Capacity | 8 L |
| Engine | |
| Engine Model | a. KOOP KD192FE (China Stage II) b. KOOP KD192FE-E5 (EURO 5) c. KUBOTA D722 (EURO 5 / EPA 4) |
| Displacement | a 0.499, b 0.499, c 0.719 L |
| Rated Power / Speed | a 7.6/3000, b 7/3000, c 10.2/2500 kw/rpm |
| Max. Torque | a 32/2200, b 32/2200, c 51.3/1800 N.m/rpm |
| Engine Oil Capacity | a 1.65, b 1.65, c 3.7 L |
| Engine Type | a Diesel, 1-Cylinder, Air Cooling b Diesel, 1-Cylinder, Air Cooling c Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 2.5 km/h |
| Rotating Speed | 9.5 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 9 kN |
| Bucket Arm Digging Force | 5.5 kN |
| Max. Traction Force | 16 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 180*72*37 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 30 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 20 MPa |
| Hydraulic Flow | 24 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Nine-way Valve |
| Hydraulic Oil Tank Capacity | 15 L |
| Main Dimensions | |
| A. Overall Length | 3010 mm |
| B. Track Length | 1220 mm |
| C. Height to Boom Top | 1050 mm |
| D. Chassis Width | 950 mm |
| E. Overall Height | 2200 mm |
| F. Ground Clearance | 410 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 770 mm |
| I. Wheel Base | 900 mm |
| J. Track Width | 180 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 320 mm |
| Operating Range | |
| 1. Max. Digging Height | 2780 mm |
| 2. Max. Dumping Height | 1950 mm |
| 3. Max. Digging Depth | 1800 mm |
| 4. Max. Digging Radius on Ground | 3050 mm |
| 5. Min. Turning Radius | 1320 mm |
| 6. Dozer Blade Max. Lifting Height | 120 mm |
| 7. Dozer Blade Max. Lowering Depth | 180 mm |
| 8. Max. Digging Radius | 3050 mm |
| 9. Max. Vertical Digging Depth | 1650 mm |
| RS. Boom Right Swing Offset | 320 mm |
| LS. Boom Left Swing Offset | 320 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ All-Weather 1.5-Ton Cab Protection: Fully glazed sealed cabin isolates the operator from rain, frost, worksite dust, and engine vibration, ensuring high productivity and operator stamina across full working shifts.
✔ Sub-1-Meter Access (950mm Width): Slips effortlessly through narrow garden passages and domestic gates, bringing genuine 1.5-ton earthmoving breakout force into restricted backyards and courtyards.
✔ Deep 1.8m Utility Trenching Depth: Reaching 1,800 mm vertically down with a 1,950 mm dumping height, operators can dig domestic septic lines, water mains, and load high-sided tipper trailers without repositioning.
✔ Trailer-Friendly 1.5-Ton Transportability: Measuring exactly 3.01 meters in total length and 1,500 kg in operating mass, the EE15 tows comfortably on light plant trailers behind standard commercial vans and pickups.
