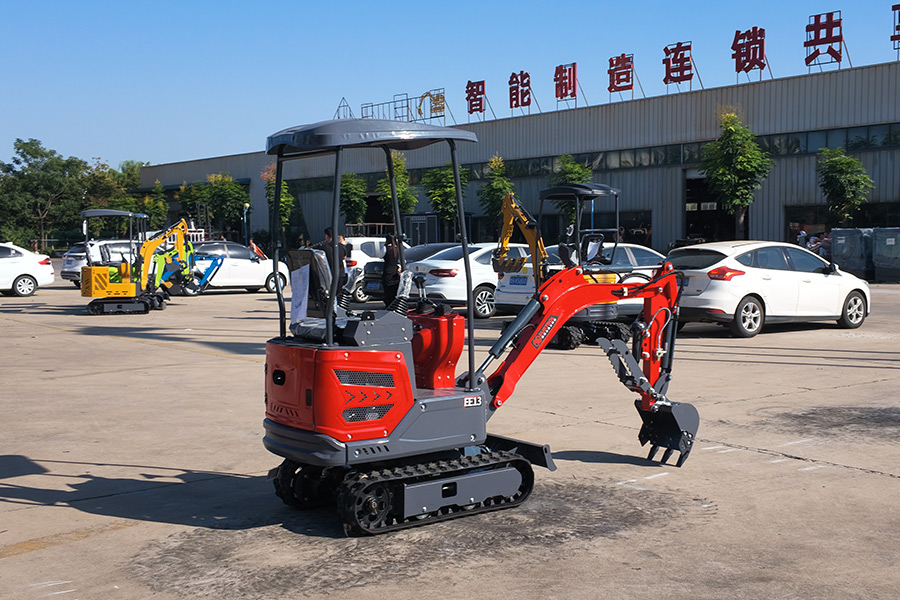

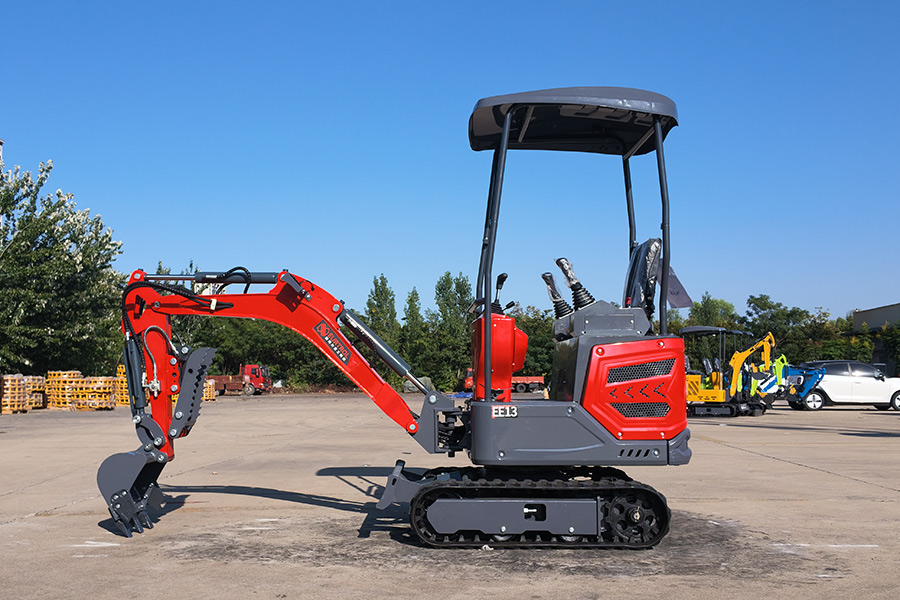

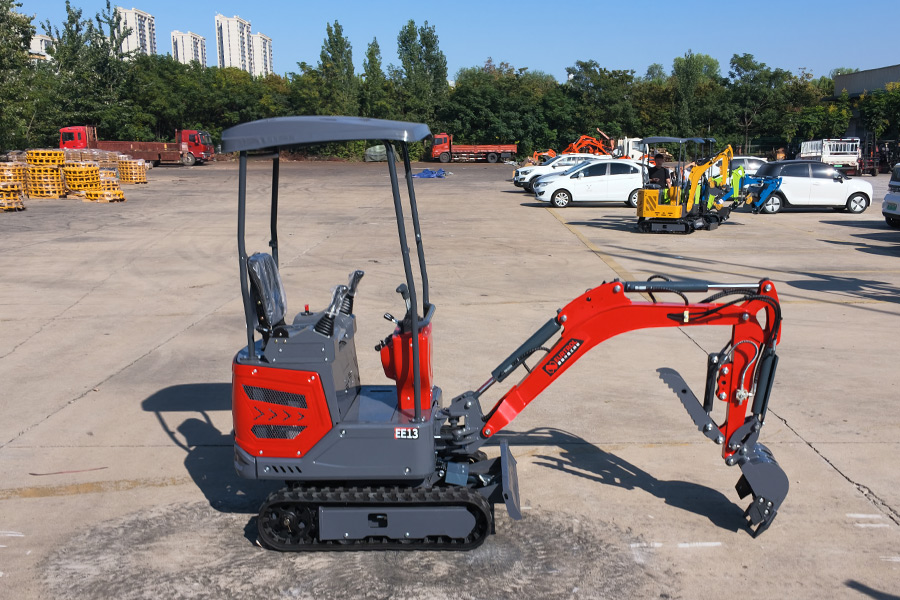

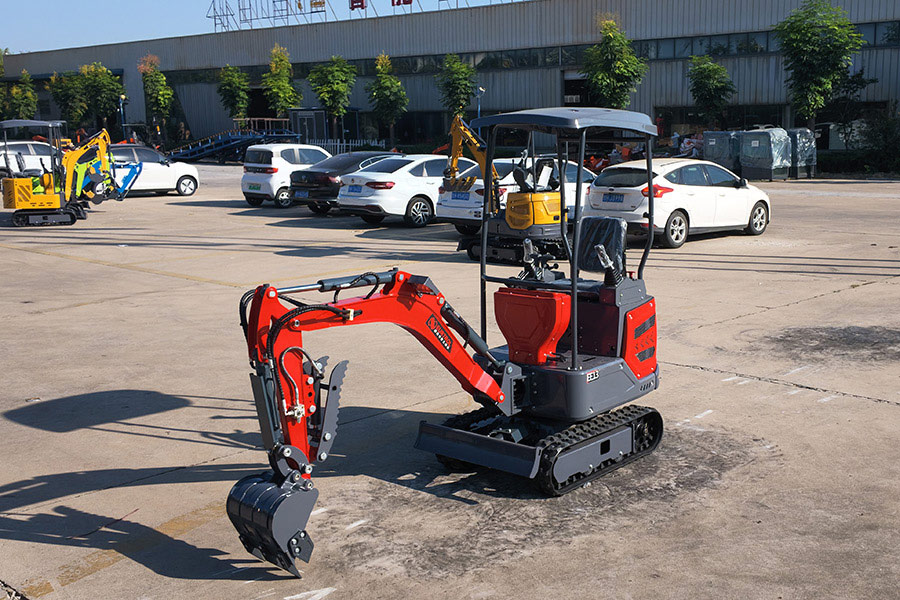

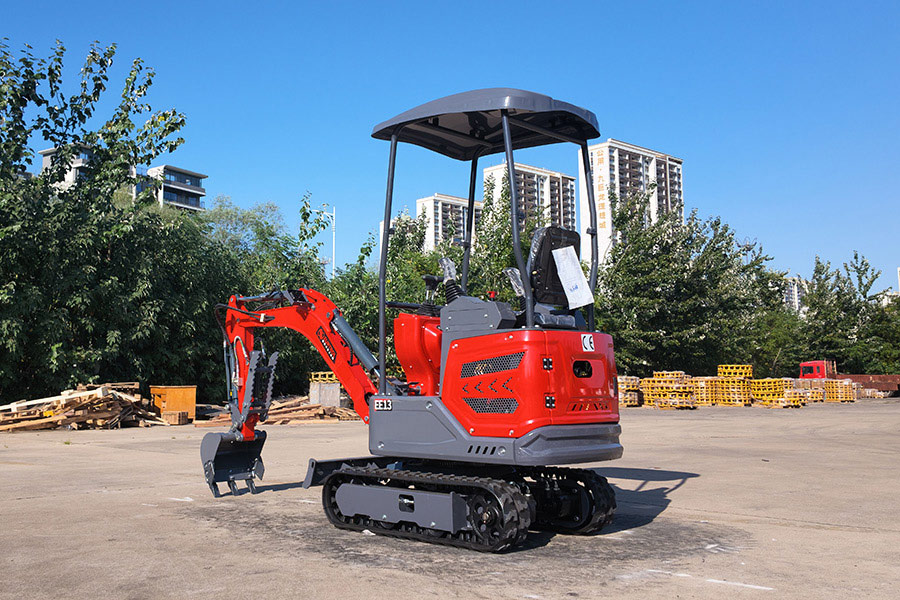

EE13 Mini Excavator
Operation weight: 1300Kg
Bucket capacity: 0.025cbm
Rated power: 7.6Kw
EE13 Compact Excavator | 1.3-Ton Heavy-Duty Earthmover with 1,750mm Deep Reach
1,300kg Operating Mass | 1,050mm Wide Stable Footprint | 1,750mm Dig Depth | RATO Gas / KOOP Diesel Power
Why Groundwork Contractors Rely on the EE13 Compact Excavator
- Robust 1.3-Ton Heavy-Duty Footprint: Bridging the gap between micro-diggers and 1.5-ton machines, the EE13 pairs a solid 1,300 kg deadweight with a widened 1,050 mm chassis, delivering exceptional ground anchoring, anti-tipping balance, and a heavy 16 kN tractive effort for demanding grading and site backfilling.
- Extended 1.75m Trenching Envelope: Features an impressive 1,750 mm maximum vertical digging depth and 1,850 mm dumping height, allowing municipal and drainage crews to reach deep utility mains, domestic septic connections, and load high-sided tipper trucks without hesitation.
- Short Tail Radius & Dual 45° Boom Articulation: Combines a compact 660 mm rear tail radius with independent 45° left/right boom swing (320 mm bilateral offset), allowing operators to execute zero-clearance boundary digging alongside brick walls, boundary fences, and highway curbs.
- Certified Dual Powerplants (EPA 4 & Euro 5): Choose between the responsive, high-rpm RATO R420 gasoline engine (9.9 kW @ 3600 rpm) for quiet residential work, or rugged KOOP KD192FE single-cylinder air-cooled diesel powerplants delivering 32 N·m of peak torque for sustained contracting endurance.
| Model | EE13 |
| Operating Weight | 1300 kg (1.3 Ton) |
| Chassis Overall Width | 1050 mm |
| Bucket Capacity / Width | 0.025 m³ / 400 mm |
| Engine Options | RATO R420 (Gasoline) / KOOP KD192FE (Diesel) |
| Max. Digging Depth | 1750 mm (1.75 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1300 kg |
| Bucket Capacity | 0.025 m³ |
| Fuel Tank Capacity | 5 L |
| Engine | |
| Engine Model | a. KOOP KD192FE (China Stage II) b. KOOP KD192FE-E5 (EURO 5) c. RATO R420 (EURO 5 / EPA 4) |
| Displacement | a 0.499, b 0.499, c 0.42 L |
| Rated Power/rpm | a 7.6/3000, b 7/3000, c 9.9/3600 kw/rpm |
| Max. Torque | a 32/2200, b 32/2200, c 28/2500 N.m/rpm |
| Oil Capacity | a 1.65, b 1.65, c 1.1 L |
| Type | a Diesel, 1-Cylinder, Air Cooling b Diesel, 1-Cylinder, Air Cooling c Gasoline, 1-Cylinder, Air Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 3.0 km/h |
| Rotating Speed | 9.5 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 9 kN |
| Bucket Arm Digging Force | 5.5 kN |
| Max. Traction Force | 16 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 180*72*37 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 28 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 16 MPa |
| Hydraulic Flow | 21 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Eight-way Valve |
| Hydraulic Oil Tank Capacity | 15 L |
| Main Dimensions | |
| A. Overall Length | 3000 mm |
| B. Track Length | 1220 mm |
| C. Height to Boom Top | 1050 mm |
| D. Chassis Width | 1050 mm |
| E. Overall Height | 2200 mm |
| F. Ground Clearance | 410 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 660 mm |
| I. Wheel Base | 900 mm |
| J. Track Width | 180 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 320 mm |
| Operating Range | |
| 1. Max. Digging Height | 2750 mm |
| 2. Max. Dumping Height | 1850 mm |
| 3. Max. Digging Depth | 1750 mm |
| 4. Max. Digging Radius on Ground | 2960 mm |
| 5. Min. Turning Radius | 1300 mm |
| 6. Dozer Blade Max. Lifting Height | 120 mm |
| 7. Dozer Blade Max. Lowering Depth | 180 mm |
| 8. Max. Digging Radius | 3050 mm |
| 9. Max. Vertical Digging Depth | 1600 mm |
| RS. Boom Right Swing Offset | 320 mm |
| LS. Boom Left Swing Offset | 320 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ 1.75m Extended Trenching Reach: With an impressive 1,750 mm digging depth and 1,850 mm dump height, contractors can effortlessly clear residential sewer mains, septic leach fields, and load standard transport tippers.
✔ Heavy 16 kN Traction & Broad Stance Stability: The wide 1,050 mm stance and low 28 kPa ground pressure provide exceptional footing on steep embankments and soft soils, while delivering 16 kN traction effort for heavy-duty earth pushing.
✔ Brisk 9.5 rpm Slewing & 3.0 km/h Travel: High-efficiency hydraulic orbit motors deliver rapid 9.5 rpm rotation speeds and fast 3.0 km/h travel, significantly boosting cycle times and site transfer efficiency.
✔ Trailer-Friendly 1.3-Ton Haulage: At 1,300 kg and exactly 3.0 m in overall length, the EE13 secures easily onto light commercial flatbeds and single-axle plant trailers alongside attachments without requiring heavy-transport CDL permits.
