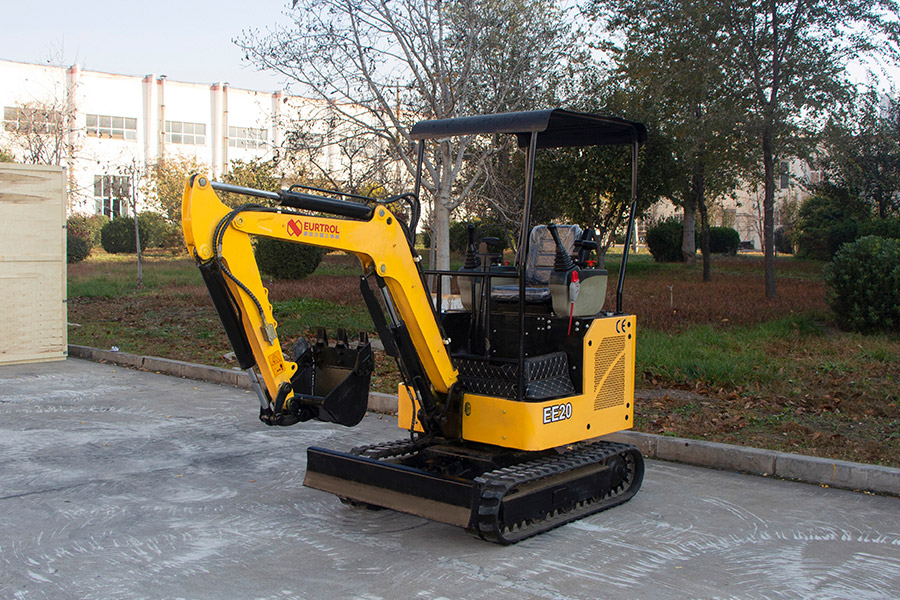

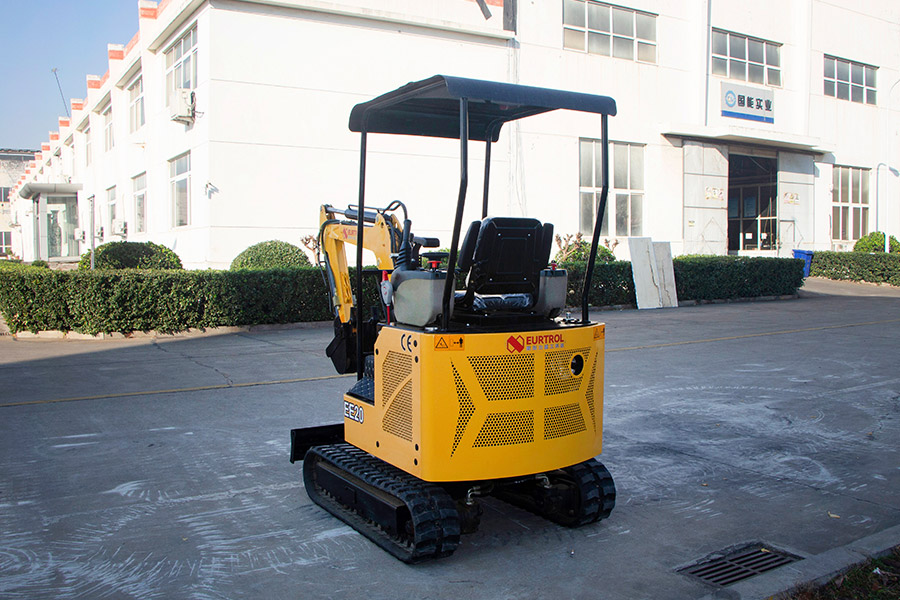

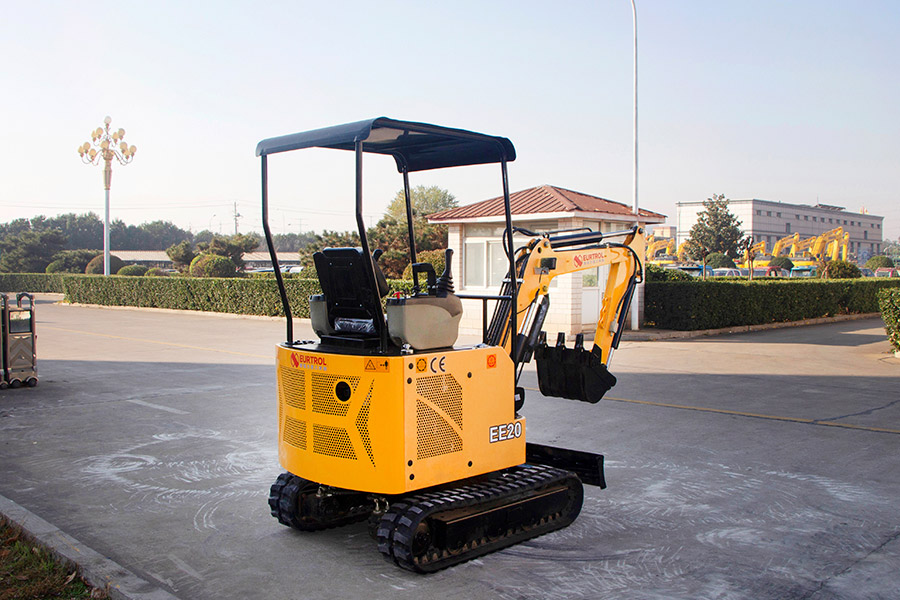

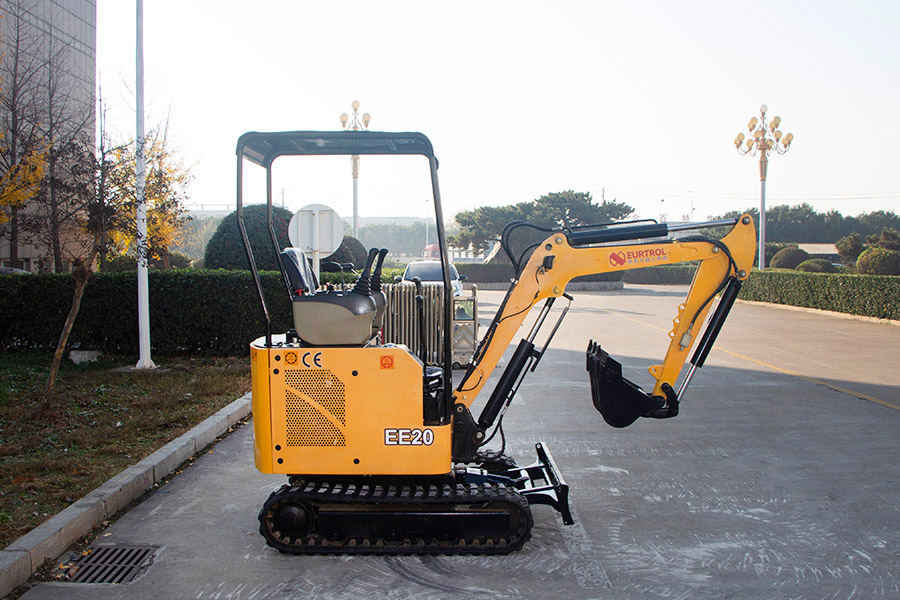

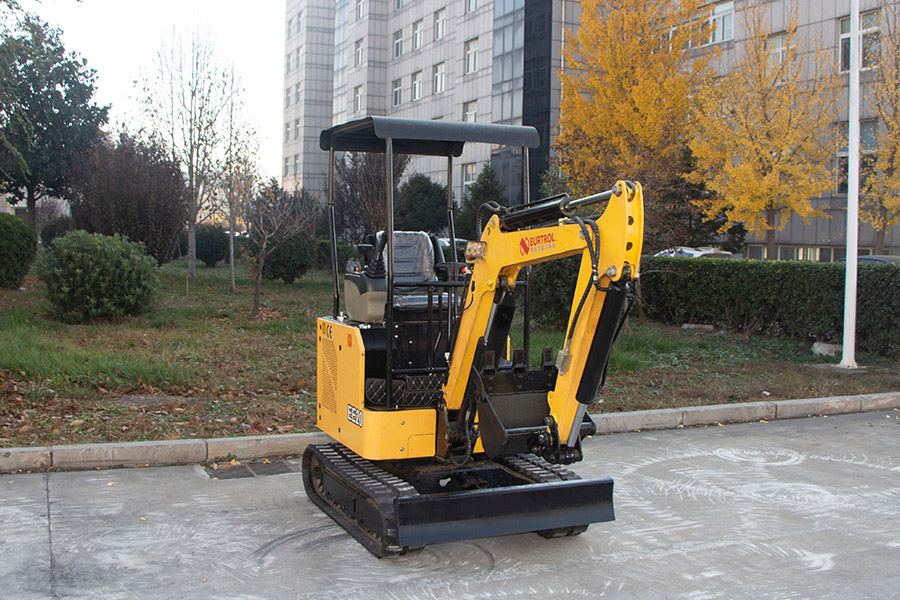

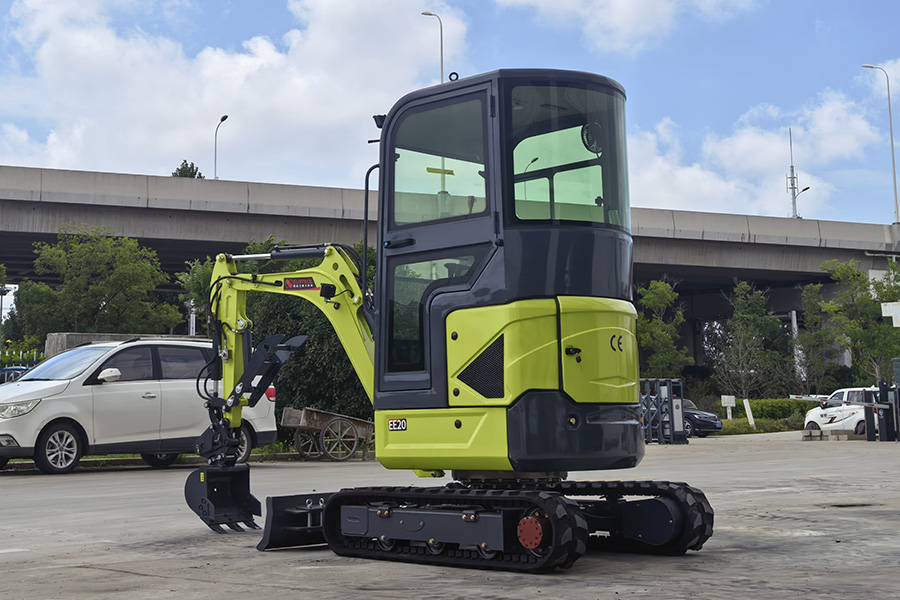

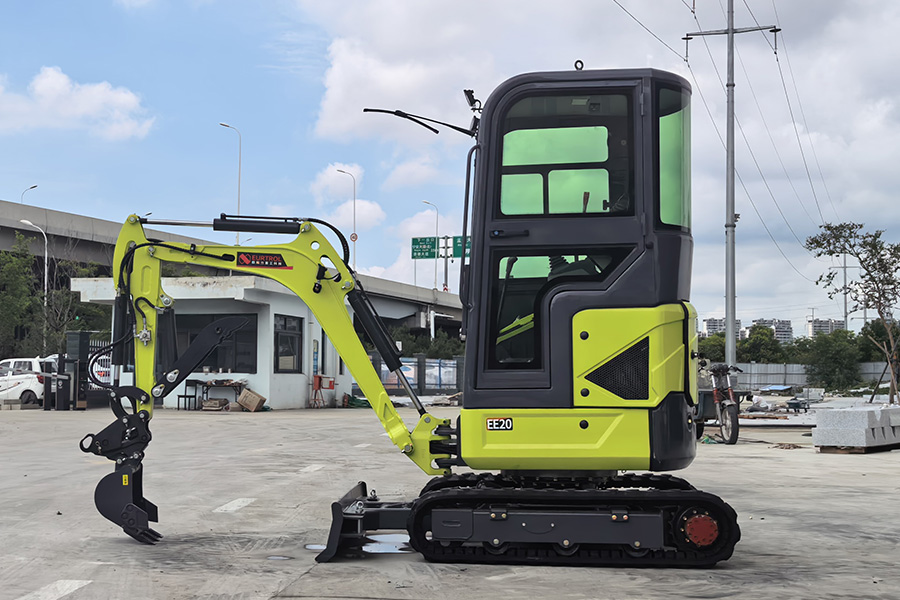

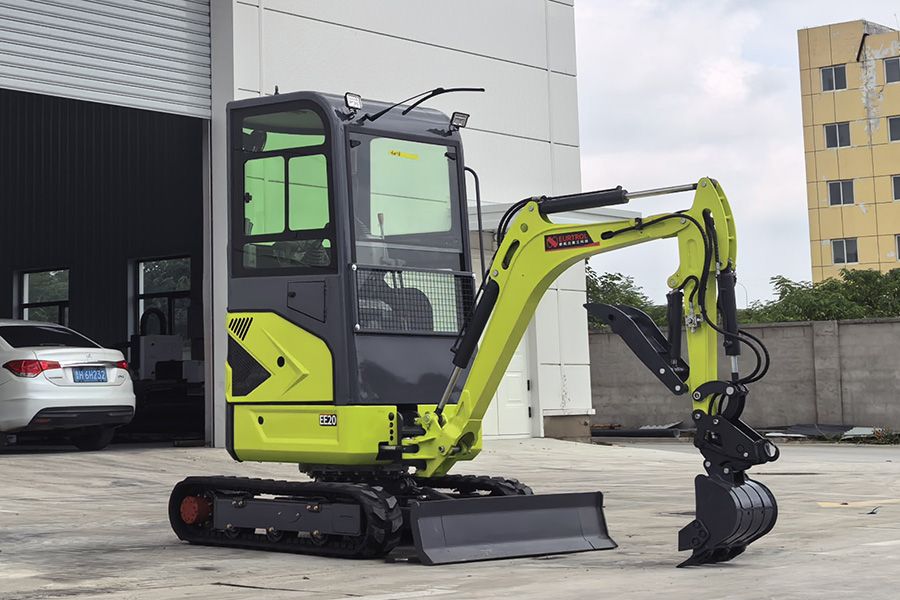

EE20 Cabin Mini Excavator
Working Pressure: 16Mpa
Bucket capacity: 0.03cbm
Rated Power: 30HP

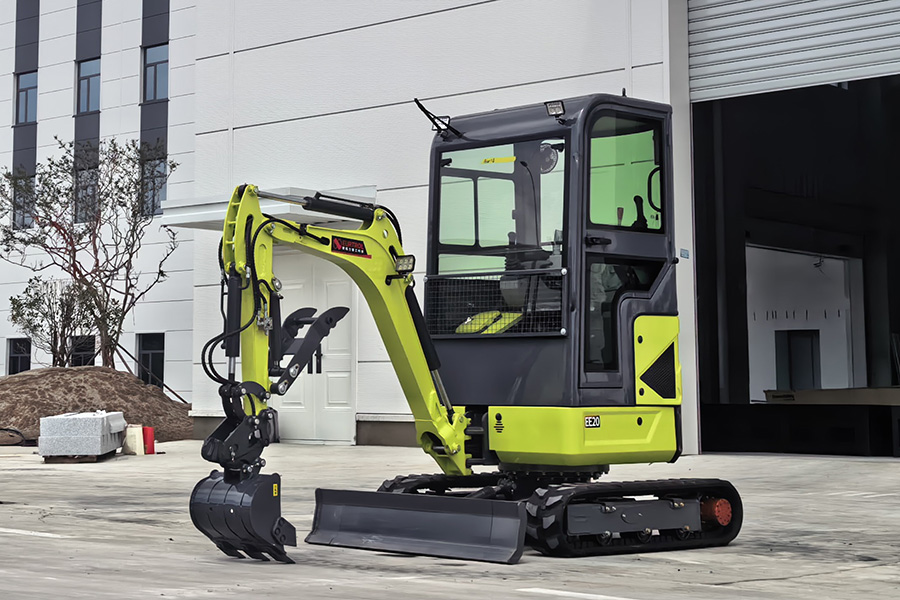

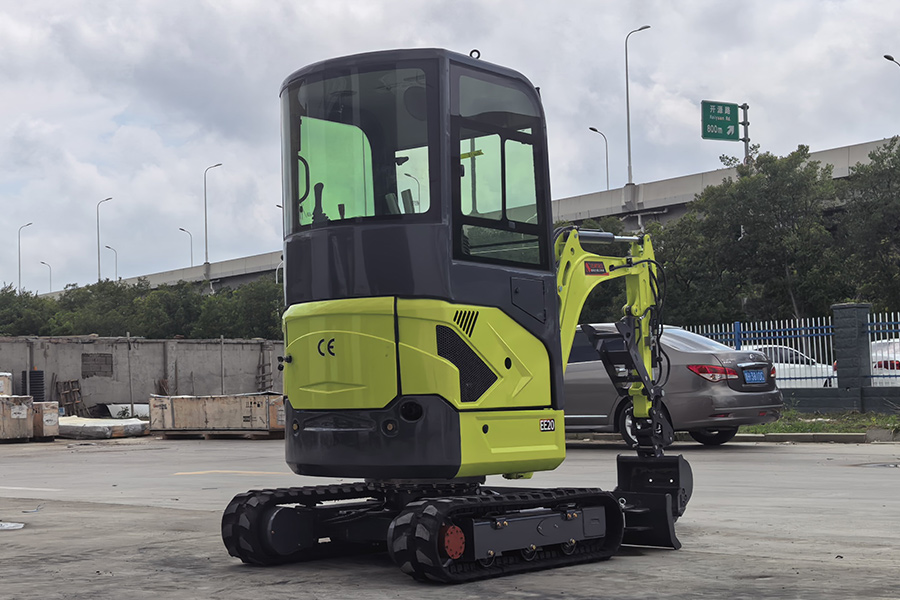

EE20 Enclosed Cab Mini Excavator | 2.0-Ton All-Weather Digger & Kubota / Yanmar Power
2,000kg Operating Mass | Factory Sealed Weatherproof Cab | 1,020–1,270mm Retractable Tracks | 2,200mm Dig Depth | Kubota D902 & Yanmar 374F
Why Utility Contractors & Fleets Choose the EE20 Full Cab Digger
- All-Weather Factory-Sealed Operator Cabin: Engineered with a fully enclosed climate-controlled cabin, the EE20 protects operators from freezing winter rain, excessive dust, and high jobsite decibels—ensuring maximum operator stamina and continuous productivity across extended 8-hour contracting shifts.
- Global Tier-1 Powertrain Options (Kubota & Yanmar): Powered exclusively by world-renowned 3-cylinder liquid-cooled diesel engines—choose between the Kubota D902 (11.8 kW, 51.3 N·m) or the Yanmar 374F (11.2 kW, 50.2 N·m)—both fully certified to EURO 5 and EPA Tier 4 standards with comprehensive global dealership parts support.
- Hydraulic Retractable Undercarriage (1,020mm – 1,270mm): Retract the 230 mm rubber tracks down to 1,020 mm to navigate narrow side alleys, garden gates, and utility trailers, then expand out to 1,270 mm for rock-solid ground stability during heavy trenching and side-loading passes.
- Ultra-Short 650mm Tail & High-Deflection Offset Boom: Features an ultra-compact 650 mm rear tail swing radius paired with wide-angle boom swing (62.7° left / 49.7° right; 515 mm left / 325 mm right offset), enabling operators to dig flush trenches tight against standing foundations and boundary fences without repositioning the undercarriage.
| Model | EE20 (Enclosed Cab Edition) |
| Operating Weight | 2000 kg (2.0 Ton) |
| Cabin Configuration | Fully Enclosed Weather-Shield Operator Cabin |
| Chassis Overall Width | 1020 – 1270 mm (Hydraulic Retractable) |
| Engine Options | Kubota D902 / Yanmar 374F (EURO 5 / EPA 4) |
| Max. Digging Depth | 2200 mm (2.2 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 2000 kg |
| Cabin Type | Fully Enclosed Weatherproof Cab |
| Bucket Capacity | 0.04 m³ |
| Fuel Tank Capacity | 19 L |
| Engine | |
| Engine Model | a. KUBOTA D902 (EURO 5 / EPA 4) b. YANMAR 374F (EURO 5 / EPA 4) |
| Displacement | a 0.898, b 0.993 L |
| Rated Power / Speed | a 11.8/2300, b 11.2/2400 kw/rpm |
| Max. Torque | a 51.3/1800, b 50.2/1800 N.m/rpm |
| Engine Oil Capacity | a 3.7, b 3.0 L |
| Engine Type | a Diesel, 3-Cylinder, Water Cooling b Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 2.2 – 4.3 km/h (2-Speed) |
| Rotating Speed | 10 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 16 kN |
| Bucket Arm Digging Force | 9.5 kN |
| Max. Traction Force | 18 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 230*48*70 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 29 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 20 MPa |
| Hydraulic Flow | 27.6 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Inner Orbit Motor |
| Main Valve Type | Hydraulic Load-sensitive Valve |
| Hydraulic Oil Tank Capacity | 20 L |
| Main Dimensions | |
| A. Overall Length | 3350 mm |
| B. Track Length | 1510 mm |
| C. Height to Boom Top | 1290 mm |
| D. Chassis Width | 1020 – 1270 mm (Adjustable) |
| E. Overall Height | 3330 mm |
| F. Ground Clearance | 420 mm |
| G. Mini Ground Clearance | 150 mm |
| H. Tail Turning Radius | 650 mm |
| I. Wheel Base | 1180 mm |
| J. Track Width | 230 mm |
| K. Bucket Width | 430 mm |
| L. Track Height | 370 mm |
| Operating Range | |
| 1. Max. Digging Height | 2900 mm |
| 2. Max. Dumping Height | 1950 mm |
| 3. Max. Digging Depth | 2200 mm |
| 4. Max. Digging Radius on Ground | 3650 mm |
| 5. Min. Turning Radius | 1600 mm |
| 6. Dozer Blade Max. Lifting Height | 150 mm |
| 7. Dozer Blade Max. Lowering Depth | 220 mm |
| 8. Max. Digging Radius | 3550 mm |
| 9. Max. Vertical Digging Depth | 2800 mm |
| RS. Boom Right Swing Offset | 325 mm |
| LS. Boom Left Swing Offset | 515 mm |
| RA. Boom Right Swing Angle | 49.7° |
| LA. Boom Left Swing Angle | 62.7° |
✔ All-Weather Cabin Protection: Factory-sealed operator cab blocks rain, freezing frost, dust, and exterior worksite noise, allowing operators to complete grueling groundwork shifts in total comfort.
✔ Slim 1,020mm Retractable Access: Hydraulically narrows to just 1,020 mm to glide through narrow residential corridors and load safely onto plant trailers, expanding out to 1,270 mm for broad anti-roll footing.
✔ Deep 2.2m Trenching & 2.8m Vertical Reach: Reaches 2,200 mm below grade with a remarkable 2,800 mm vertical wall digging depth, allowing precise deep-trench profiling for foundation drainage and municipal lines.
✔ Swift 4.3 km/h Dual-Speed Mobility: High/low dual-speed tracking motors provide agile 4.3 km/h site relocation and 18 kN drawbar pull, cutting backfill cycles and grade climbing time.
