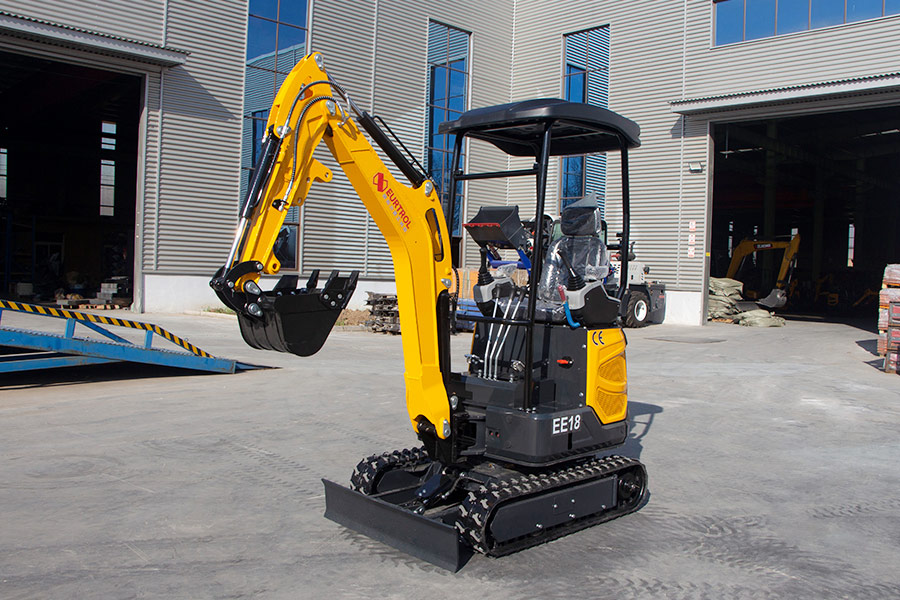

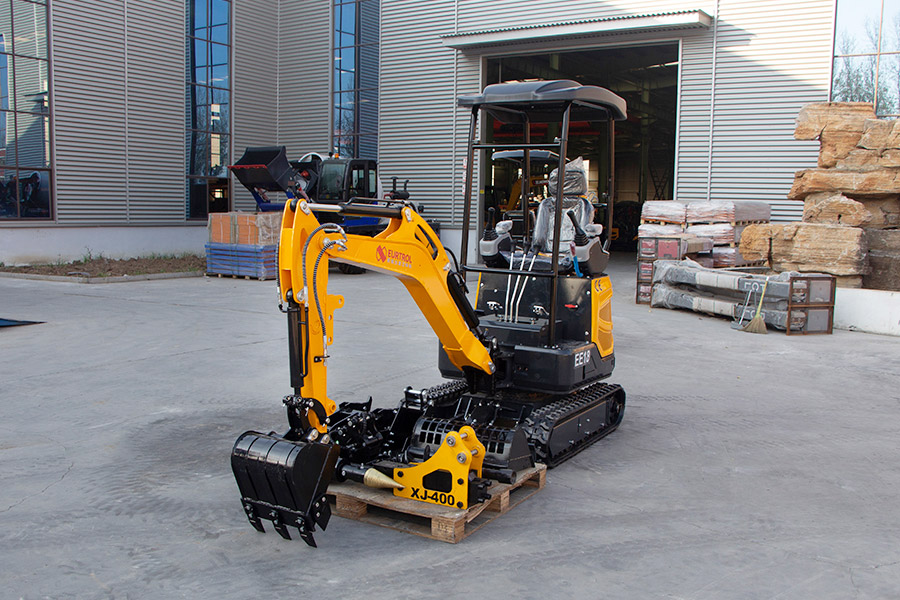

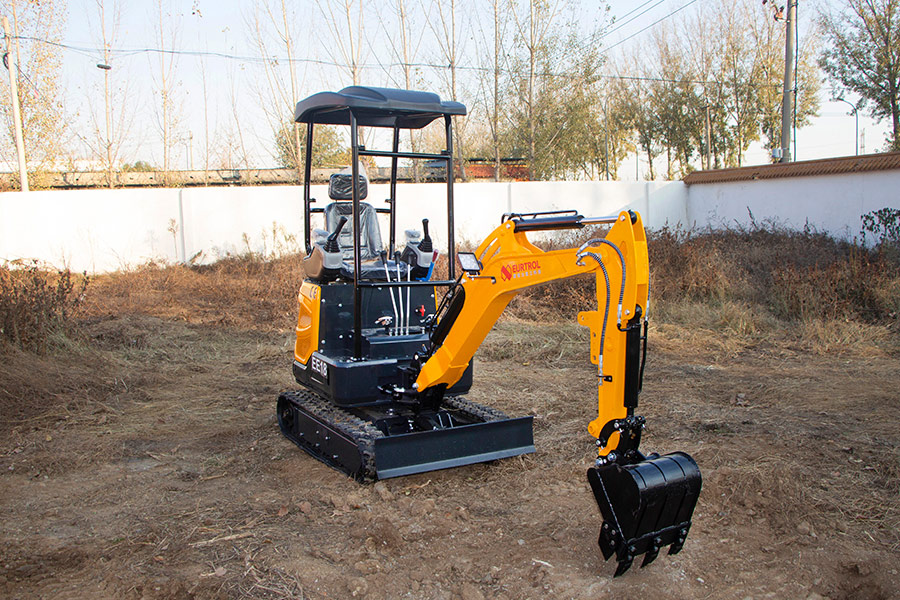

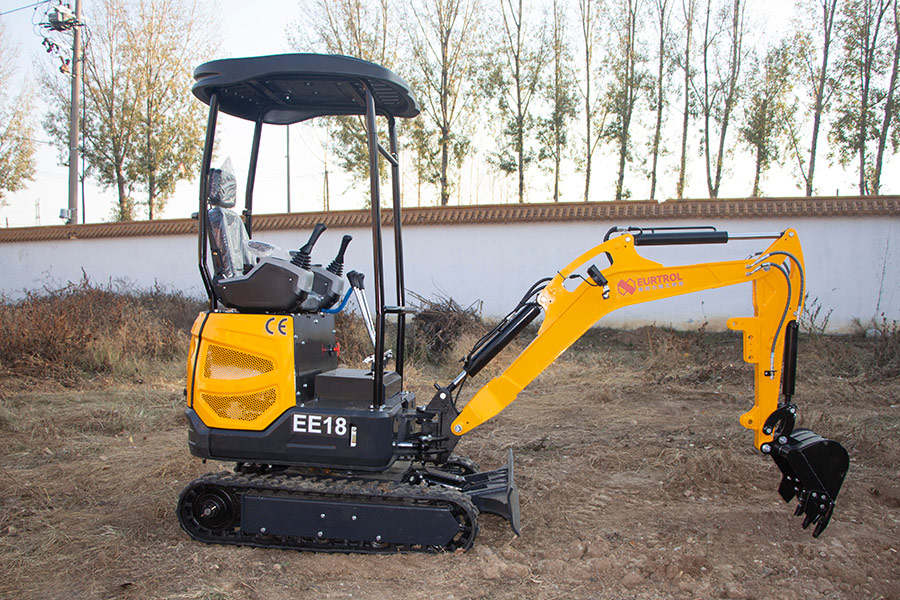

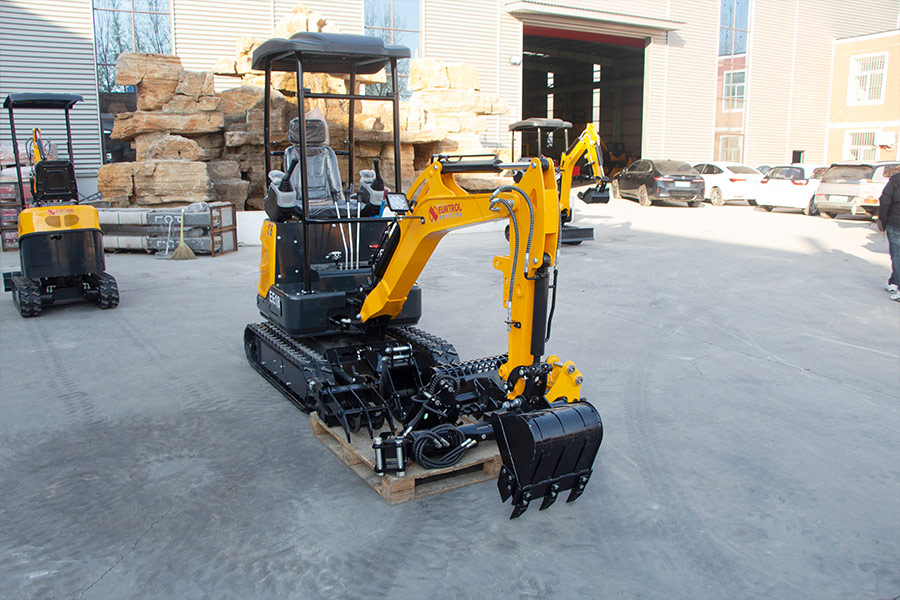

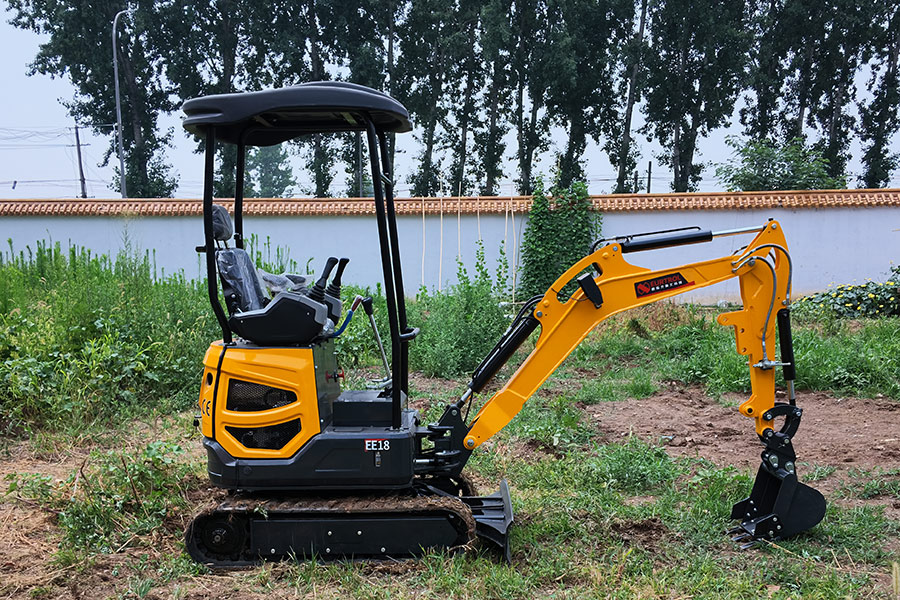

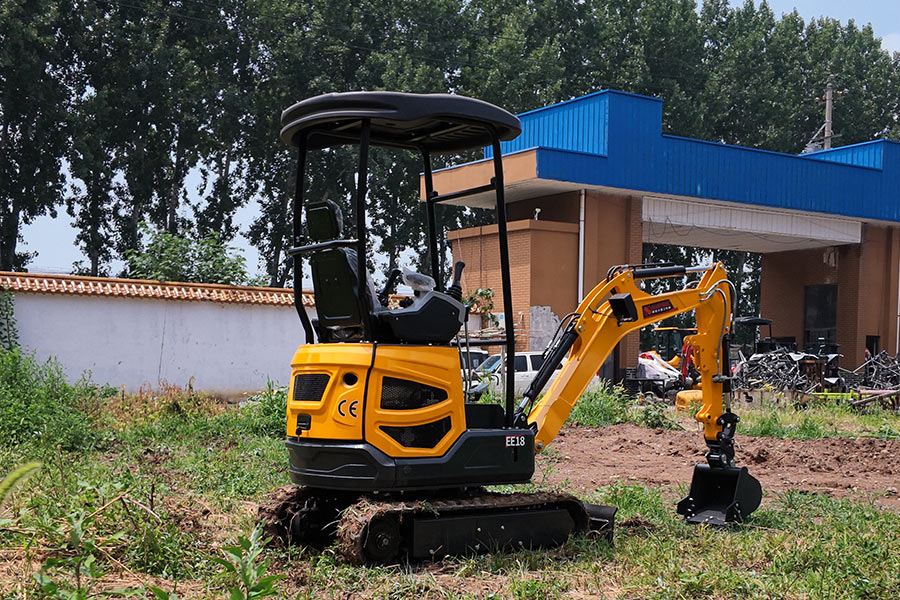

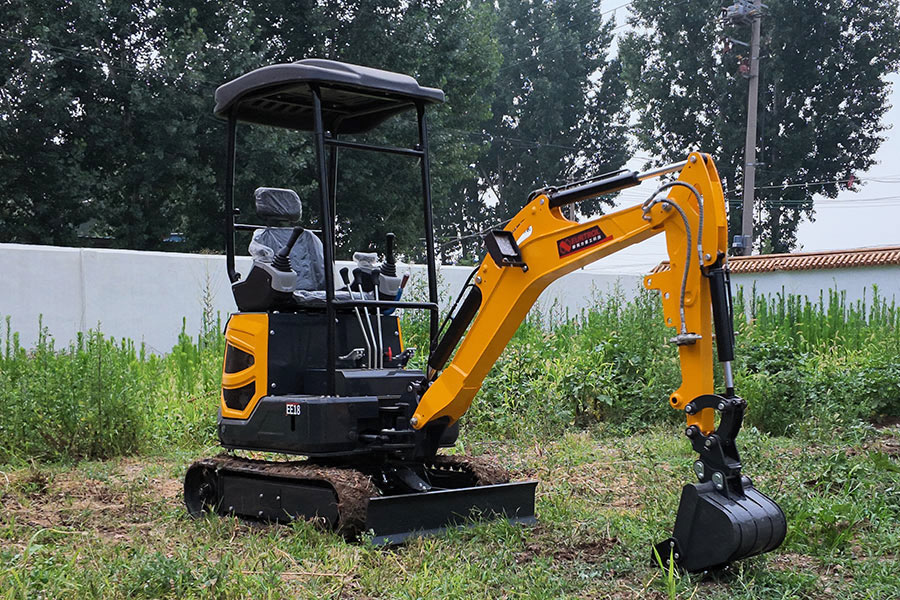

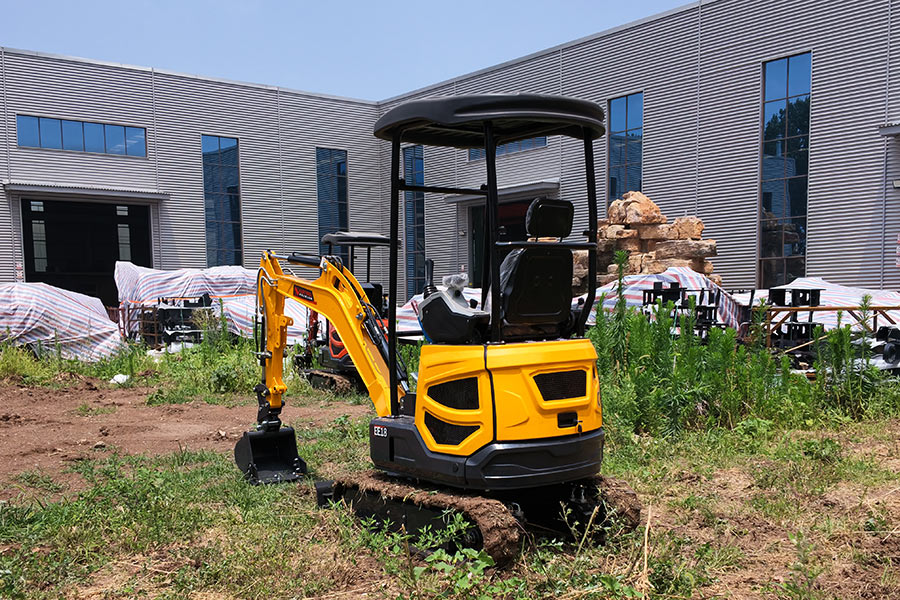

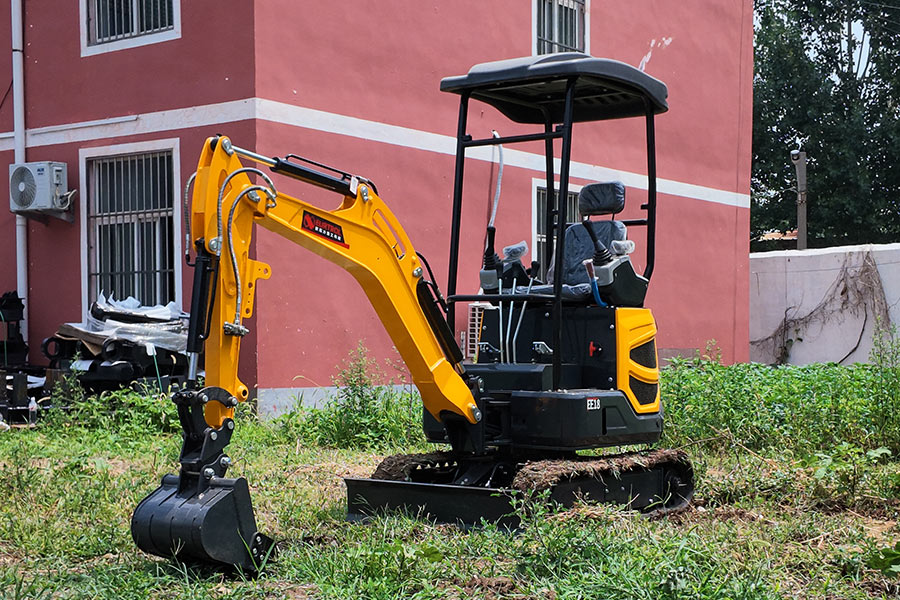

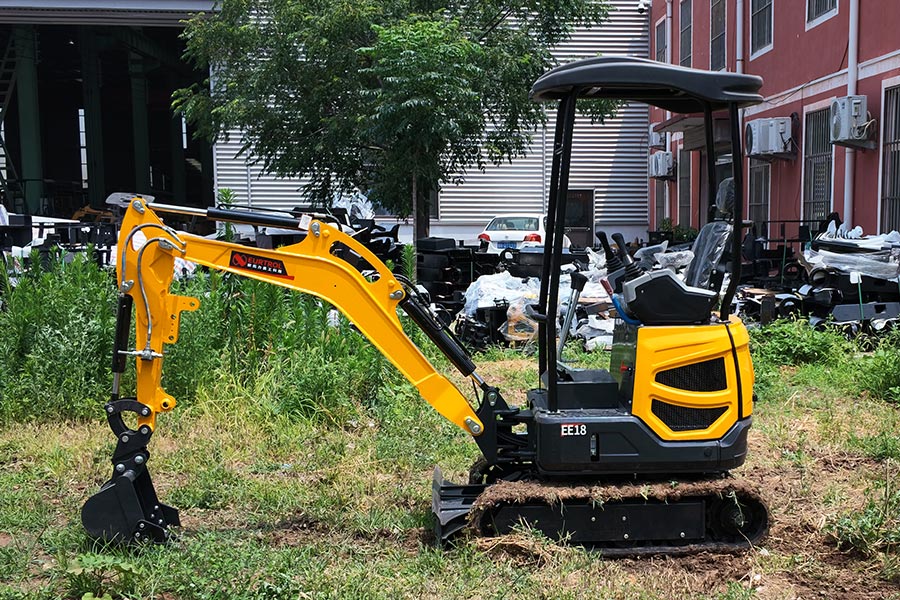

EE18 Mini Excavator
Working Pressure: 20Mpa
Bucket capacity: 0.02cbm
Rated Power: 10.4kw
EE18 Compact Excavator | 1.8-Ton Heavy-Duty Mini Digger & 3-Cylinder Diesel Power
1,800kg Operating Mass | 0.04m³ Bucket Capacity | 3-Cylinder Liquid-Cooled Diesel | 20 MPa High-Flow Hydraulics
Why Commercial Contractors Choose the EE18 Compact Excavator
- All 3-Cylinder Liquid-Cooled Diesel Lineup: Engineered exclusively with smooth-running, heavy-torque 3-cylinder water-cooled powerplants. Choose premium Kubota diesels (D722 & D902, EPA 4/Euro 5 compliant) for global parts support, or high-displacement Laidong LL385 diesels delivering up to 29 kW and 92 N·m torque for extreme industrial cycles.
- Larger 0.04m³ Bucket & 10 kN Breakout Force: Upgraded with a high-capacity 0.04 m³ bucket backed by 10 kN bucket digging force and 6 kN dipperstick force, the EE18 moves significantly more earth per cycle, speeding up bulk excavation, trenching, and truck loading operations.
- High-Output 30 L/min Hydraulic Power: Features a robust 20 MPa hydraulic system generating 30 L/min pump flow managed through a 9-way multi-function control valve, providing smooth concurrent boom/arm/slew movements and high-flow attachment operation for breakers, augers, and thumbs.
- Heavy 1.8-Ton Stability & 200mm Wide Tracks: Rides on durable 200 mm wide rubber tracks over a 1,100 mm undercarriage stance, delivering excellent slope balance (30° gradeability), low 30 kPa ground pressure, and 360 mm dual-offset boom deflection for boundary-line trenching.
| Model | EE18 |
| Operating Weight | 1800 kg (1.8 Ton) |
| Chassis Overall Width | 1100 mm |
| Bucket Capacity / Breakout Force | 0.04 m³ / 10 kN |
| Engine Configurations | Kubota D722 / D902 / Laidong LL385 (All 3-Cylinder Diesel) |
| Max. Digging Depth | 2000 mm (2.0 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1800 kg |
| Bucket Capacity | 0.04 m³ |
| Fuel Tank Capacity | 9.5 L |
| Engine | |
| Engine Model | a. LAIDONG LL385 (China Stage II) b. LAIDONG LL385 (EURO 5) c. KUBOTA D722 (EURO 5 / EPA 4) d. KUBOTA D902 (EURO 5 / EPA 4) |
| Displacement | a 1.617, b 1.617, c 0.719, d 0.898 L |
| Rated Power/rpm | a 29/2200, b 18.8/2400, c 10.2/2500, d 11.8/2300 kw/rpm |
| Max. Torque | a 92/2000, b 92/2000, c 51.3/1800, d 51.3/1800 N.m/rpm |
| Oil Capacity | a 4.0, b 4.0, c 3.7, d 3.7 L |
| Type | a Diesel, 3-Cylinder, Water Cooling b Diesel, 3-Cylinder, Water Cooling c Diesel, 3-Cylinder, Water Cooling d Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 3.0 km/h |
| Rotating Speed | 10 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 10 kN |
| Bucket Arm Digging Force | 6 kN |
| Max. Traction Force | 16 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 200*72*42 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 30 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 20 MPa |
| Hydraulic Flow | 30 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Nine-way Valve |
| Hydraulic Oil Tank Capacity | 18 L |
| Main Dimensions | |
| A. Overall Length | 3320 mm |
| B. Track Length | 1395 mm |
| C. Height to Boom Top | 1190 mm |
| D. Chassis Width | 1100 mm |
| E. Overall Height | 2400 mm |
| F. Ground Clearance | 445 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 780 mm |
| I. Wheel Base | 1075 mm |
| J. Track Width | 200 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 370 mm |
| Operating Range | |
| 1. Max. Digging Height | 3030 mm |
| 2. Max. Dumping Height | 2080 mm |
| 3. Max. Digging Depth | 2000 mm |
| 4. Max. Digging Radius on Ground | 3260 mm |
| 5. Min. Turning Radius | 1500 mm |
| 6. Dozer Blade Max. Lifting Height | 150 mm |
| 7. Dozer Blade Max. Lowering Depth | 220 mm |
| 8. Max. Digging Radius | 3160 mm |
| 9. Max. Vertical Digging Depth | 1940 mm |
| RS. Boom Right Swing Offset | 360 mm |
| LS. Boom Left Swing Offset | 360 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ Full 2.0m Utility Trenching Depth: With a true 2,000 mm vertical digging depth and 10 kN bucket breakout power, the EE18 cuts deep municipal water trenches, septic systems, and foundation drains in fewer passes.
✔ Industrial 3-Cylinder Water-Cooled Reliability: Multi-cylinder diesel configurations ensure low vibration, long component life, and reliable cooling performance through scorching summer earthmoving shifts.
✔ High-Flow 30 L/min Hydraulics with 9-Way Valve: Generates ample oil volume at 20 MPa to easily run hydraulic rock breakers, high-torque augers, and hydraulic sorting grapples without sacrificing arm speed.
✔ Solid 1.8-Ton Stability & Elevated Clearance: Featuring 445 mm chassis ground clearance and 200 mm wide tracks, the machine travels easily over rock piles and wet clay without bogging down.
