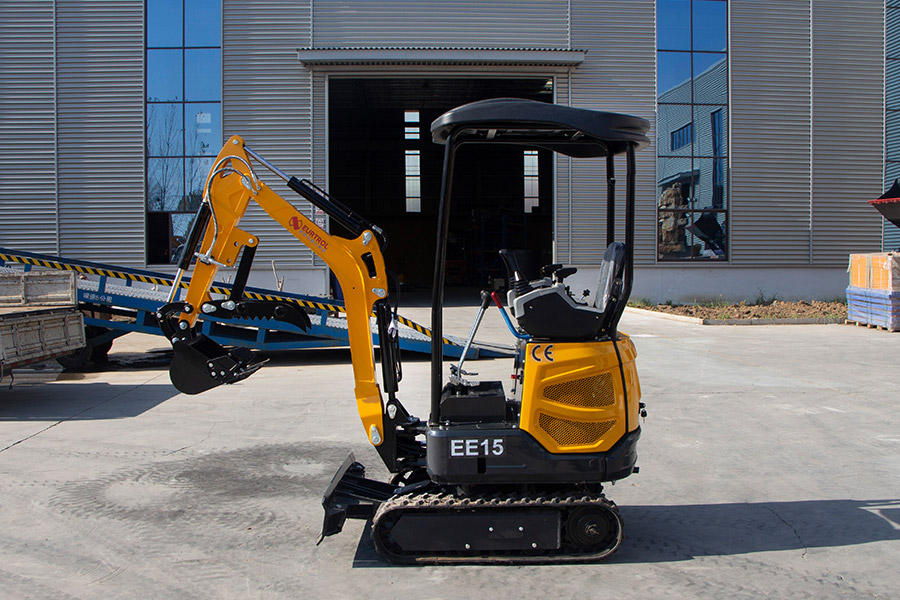

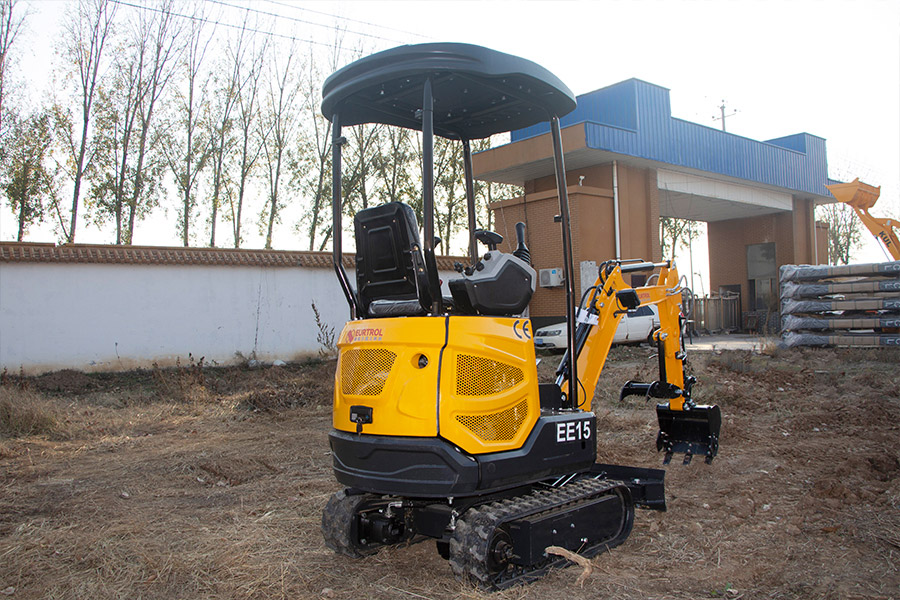

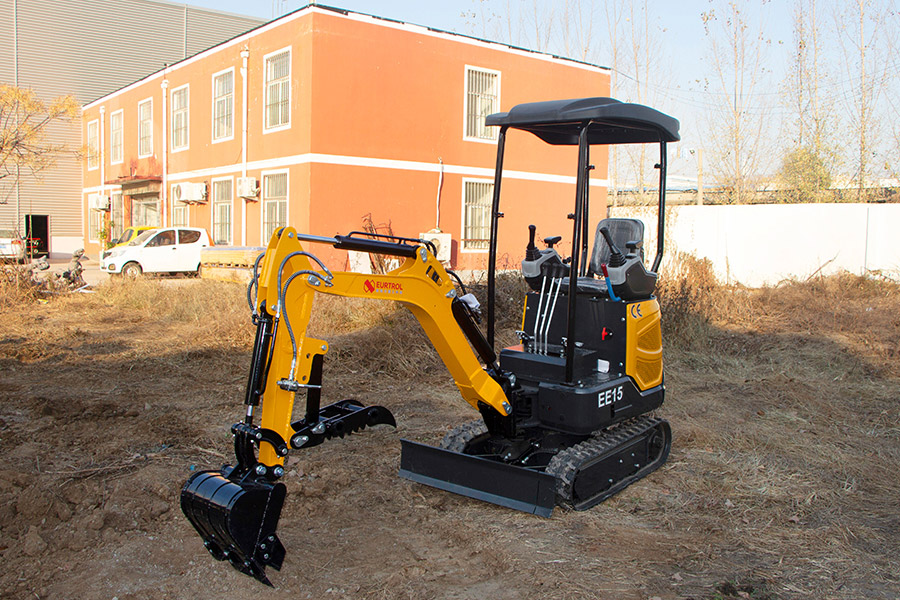

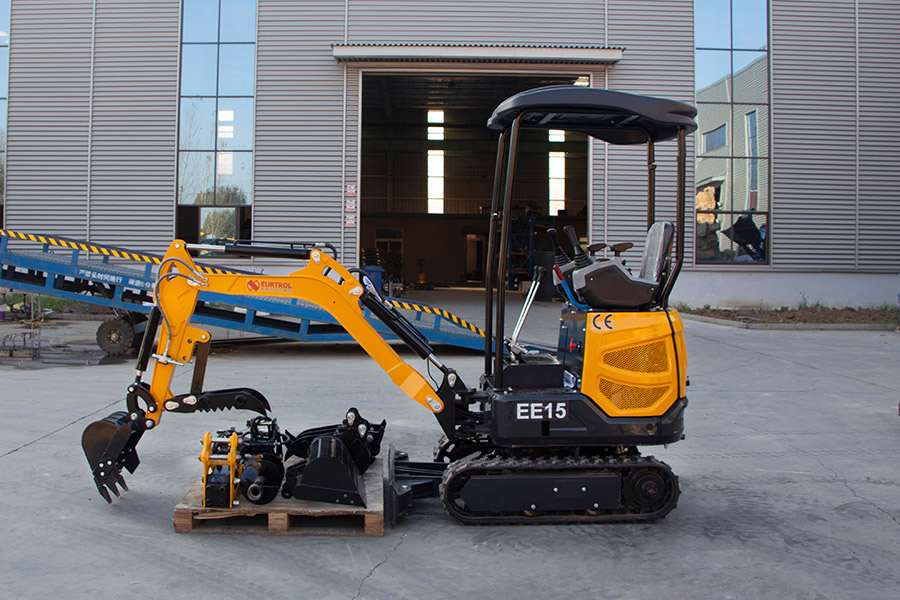

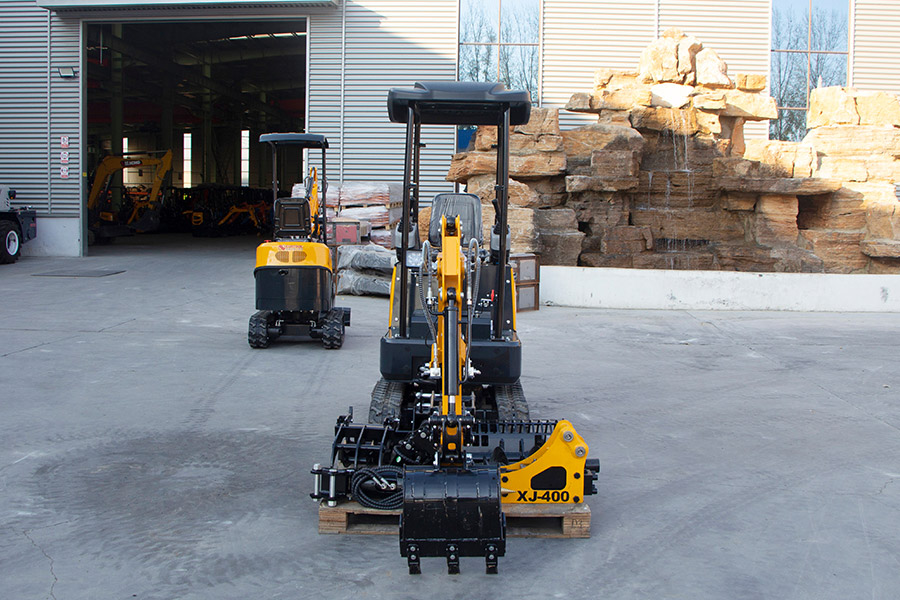

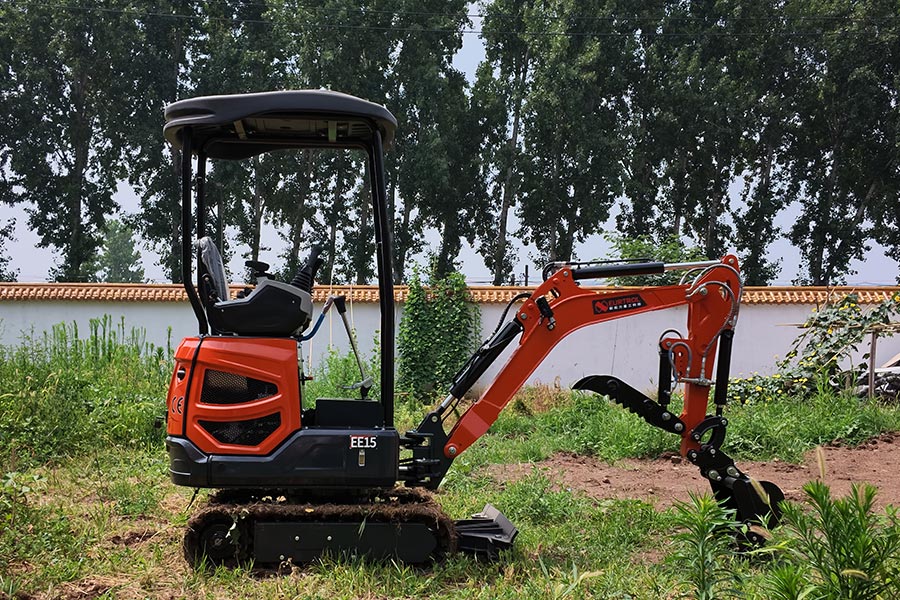

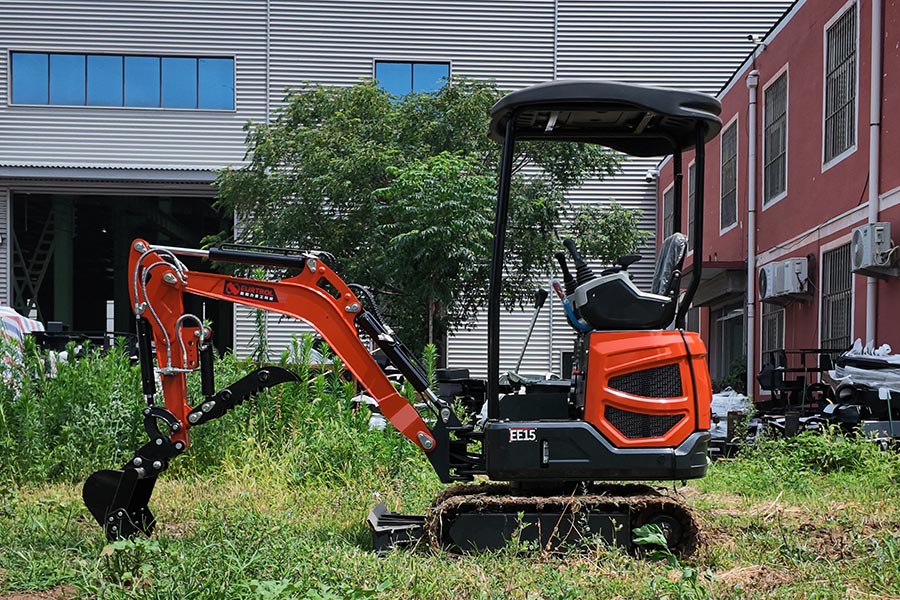

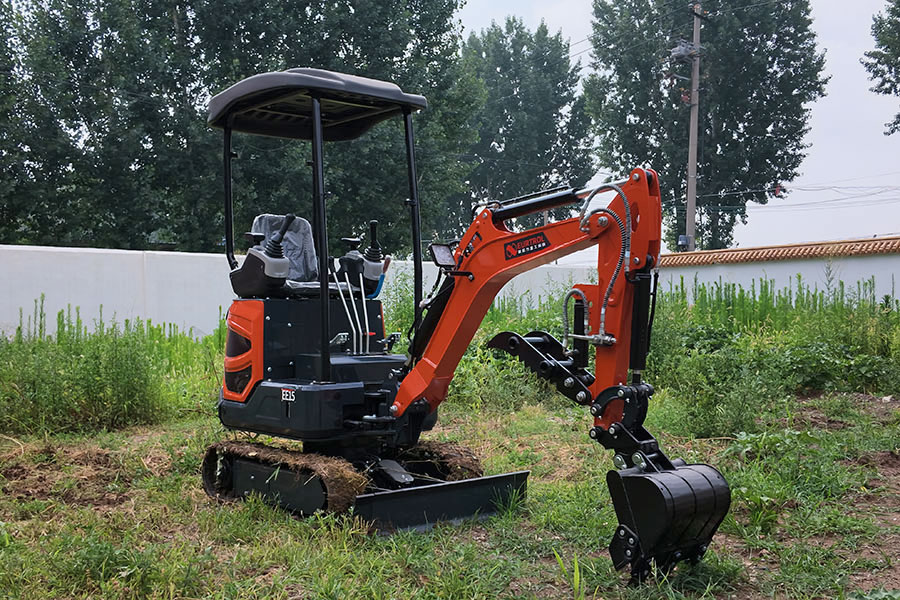

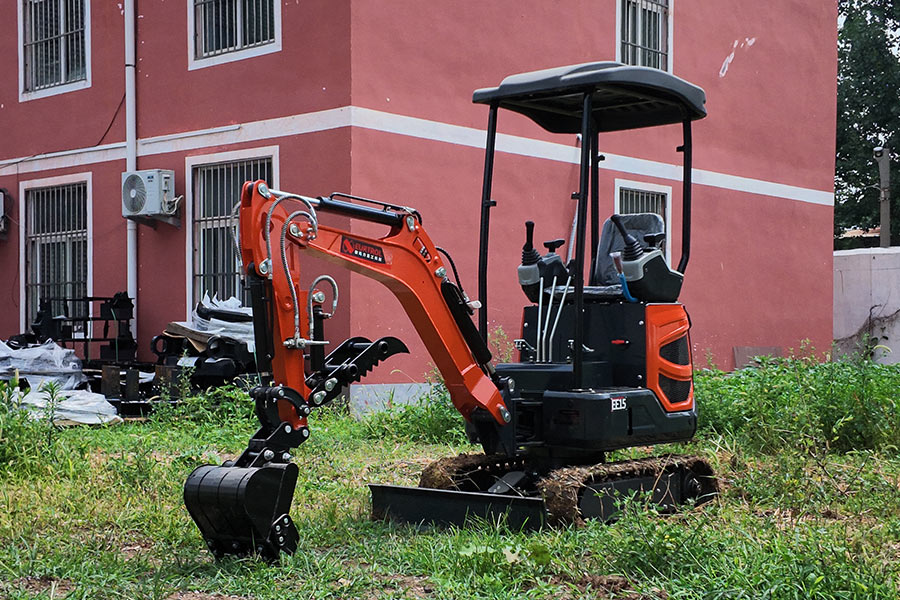

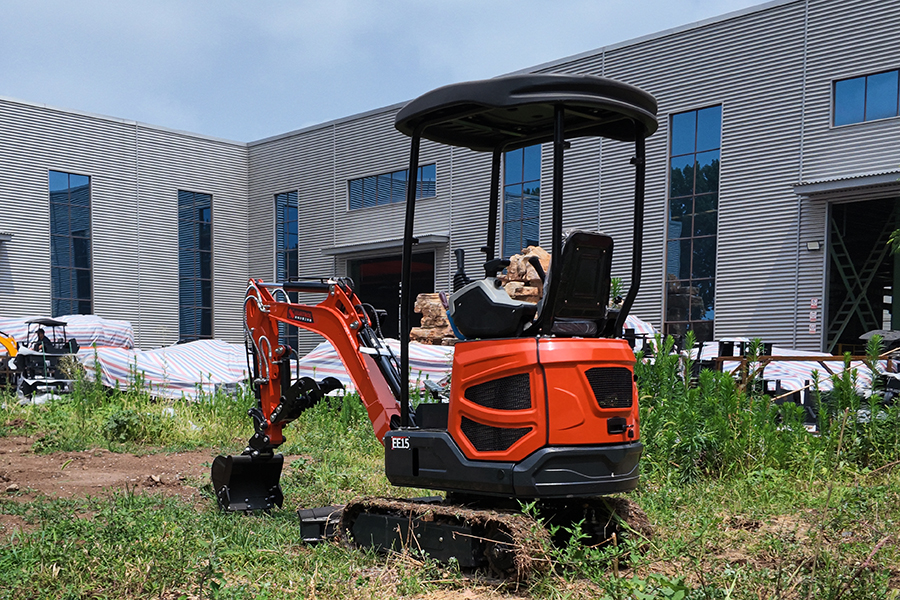

EE15 Mini Excavator
Working Pressure: 20Mpa
Bucket capacity: 0.016cbm
Rated Power: 10.4kw
EE15 Mini Excavator | 1.5-Ton Heavy-Duty Compact Digger with 2,100mm Deep Dig
1,500kg Operating Mass | 2,100mm Trench Depth | 3-Cylinder Diesel (Kubota / Laidong) | 20 MPa High-Flow Hydraulics
Why Commercial Contractors Choose the EE15 Compact Excavator
- True 2.1m Deep Foundation Reach: Delivering an extraordinary 2,100 mm maximum trenching depth and 2,150 mm dumping height, the EE15 easily out-digs conventional 1.5-ton machines—allowing utility contractors to reach deep municipal sewer mains, septic leach systems, and load high-sided commercial dumpers with complete clearance.
- Industrial 3-Cylinder Multi-Engine Platforms: In addition to economical KOOP single-cylinder options, the EE15 accommodates heavy-duty 3-cylinder liquid-cooled diesels including the legendary Kubota D722 (EPA 4/Euro 5, 51.3 N·m torque) and high-output Laidong LL385 (up to 29 kW / 92 N·m torque) for low-vibration, high-torque industrial endurance.
- Upgraded 20 MPa / 24 L/min Hydraulic Core: Powered by an upgraded high-pressure hydraulic gear pump delivering 24 L/min at 20 MPa through an 8-way multi-spool distribution block, providing ample auxiliary oil flow to power hydraulic breakers, earth augers, and tilt attachments with zero hydraulic fade.
- 1,050mm Solid Anti-Tip Undercarriage: Built with a widened 1,050 mm chassis, 16 kN high-tractive tractive drive, and dual 45° boom swing (320 mm bilateral offset), the machine maintains rock-solid ground anchoring on embankments while executing flush cuts tight against concrete footings.
| Model | EE15 |
| Operating Weight | 1500 kg (1.5 Ton) |
| Chassis Overall Width | 1050 mm |
| Bucket Capacity / Breakout Force | 0.025 m³ / 9 kN |
| Engine Options | Kubota D722 / Laidong LL385 (3-Cylinder) / KOOP KD192FE |
| Max. Digging Depth | 2100 mm (2.1 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1500 kg |
| Bucket Capacity | 0.025 m³ |
| Fuel Tank Capacity | 8 L |
| Engine | |
| Engine Model | a. KOOP KD192FE (China Stage II) b. KOOP KD192FE-E5 (EURO 5) c. LAIDONG LL385 (China Stage II) d. LAIDONG LL385 (EURO 5) e. KUBOTA D722 (EURO 5 / EPA 4) |
| Displacement | a 0.499, b 0.499, c 1.617, d 1.617, e 0.719 L |
| Rated Power/rpm | a 7.6/3000, b 7/3000, c 29/2200, d 18.8/2400, e 10.2/2500 kw/rpm |
| Max. Torque | a 32/2200, b 32/2200, c 92/2000, d 92/2000, e 51.3/1800 N.m/rpm |
| Oil Capacity | a 1.65, b 1.65, c 4.0, d 4.0, e 3.7 L |
| Type | a Diesel, 1-Cylinder, Air Cooling b Diesel, 1-Cylinder, Air Cooling c Diesel, 3-Cylinder, Water Cooling d Diesel, 3-Cylinder, Water Cooling e Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 3.0 km/h |
| Rotating Speed | 9.5 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 9 kN |
| Bucket Arm Digging Force | 5.5 kN |
| Max. Traction Force | 16 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 180*72*37 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 30 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 20 MPa |
| Hydraulic Flow | 24 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Eight-way Valve |
| Hydraulic Oil Tank Capacity | 15 L |
| Main Dimensions | |
| A. Overall Length | 3010 mm |
| B. Track Length | 1220 mm |
| C. Height to Boom Top | 1050 mm |
| D. Chassis Width | 1050 mm |
| E. Overall Height | 2200 mm |
| F. Ground Clearance | 410 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 770 mm |
| I. Wheel Base | 900 mm |
| J. Track Width | 180 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 320 mm |
| Operating Range | |
| 1. Max. Digging Height | 2950 mm |
| 2. Max. Dumping Height | 2150 mm |
| 3. Max. Digging Depth | 2100 mm |
| 4. Max. Digging Radius on Ground | 3050 mm |
| 5. Min. Turning Radius | 1320 mm |
| 6. Dozer Blade Max. Lifting Height | 120 mm |
| 7. Dozer Blade Max. Lowering Depth | 180 mm |
| 8. Max. Digging Radius | 3150 mm |
| 9. Max. Vertical Digging Depth | 2000 mm |
| RS. Boom Right Swing Offset | 320 mm |
| LS. Boom Left Swing Offset | 320 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ Deep 2.1m Trenching & High-Tip Clearance: Achieving 2,100 mm in vertical excavation depth and 2,150 mm dumping height, operators can dig deep municipal utility lines and easily clear high sideboard trucks without heap spillover.
✔ Heavy 3-Cylinder Liquid-Cooled Durability: With Laidong and Kubota 3-cylinder diesel options, fleets benefit from vibration-damped operation, superior summer thermal control, and high torque reserve (up to 92 N·m) for continuous heavy duty.
✔ Enhanced 20 MPa / 24 L/min Hydraulic Power: Provides heavy auxiliary oil flow to operate large hydraulic breakers, post-hole augers, and hydraulic thumbs without slowing down travel or boom cycles.
✔ Stable 1,050mm Footprint & Low Ground Bearing: The 1,050 mm chassis width pairs with 30 kPa ground pressure, ensuring sure-footed climbing on 30° slopes while preserving paved pathways and curb edges.
