EE12 Mini Excavator
Operation weight: 1200Kg
Bucket capacity: 0.025cbm
Rated power: 7/7.6/10.1Kw

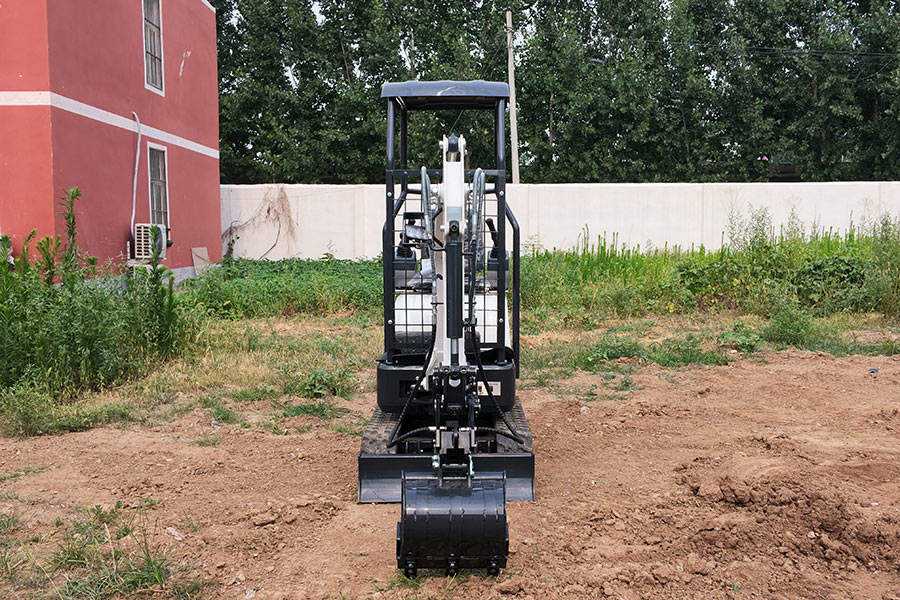

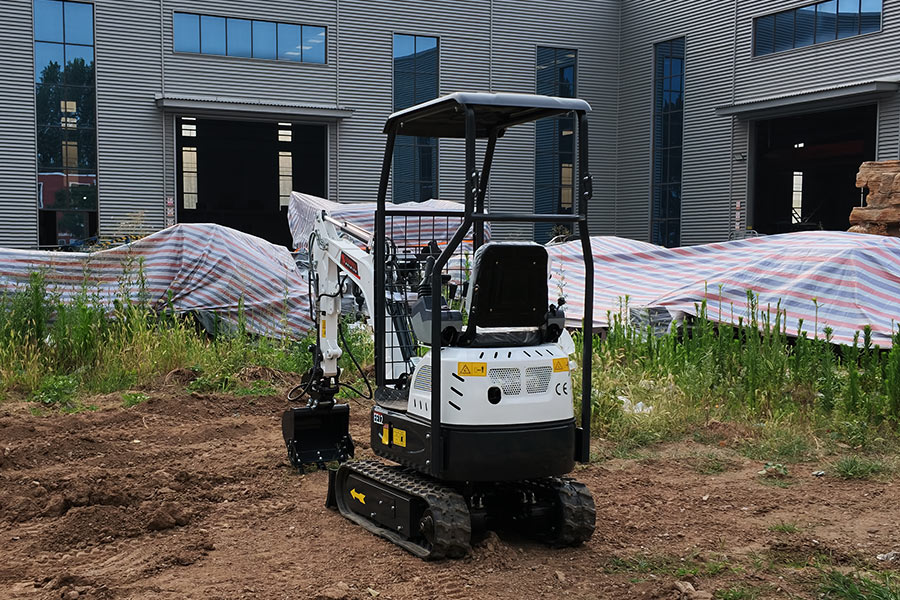

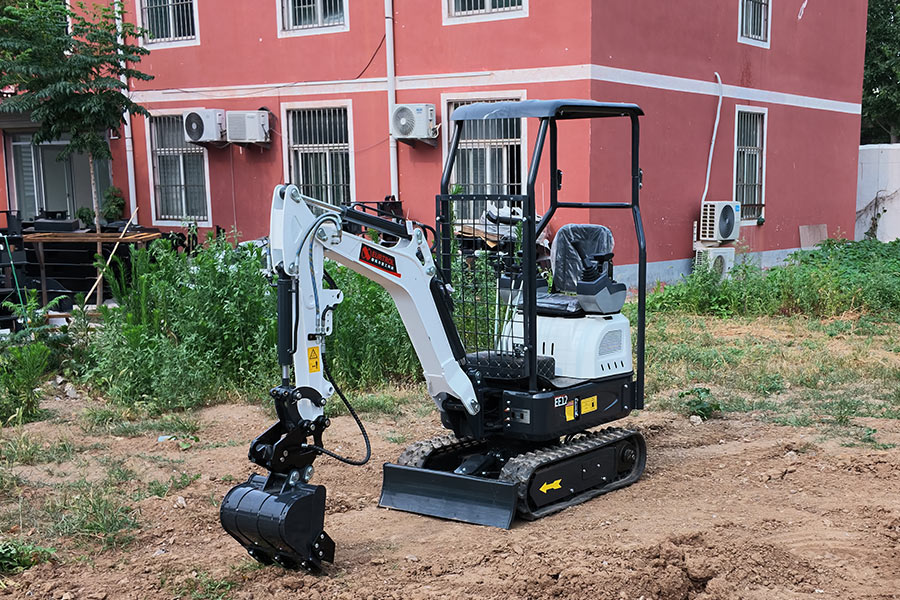

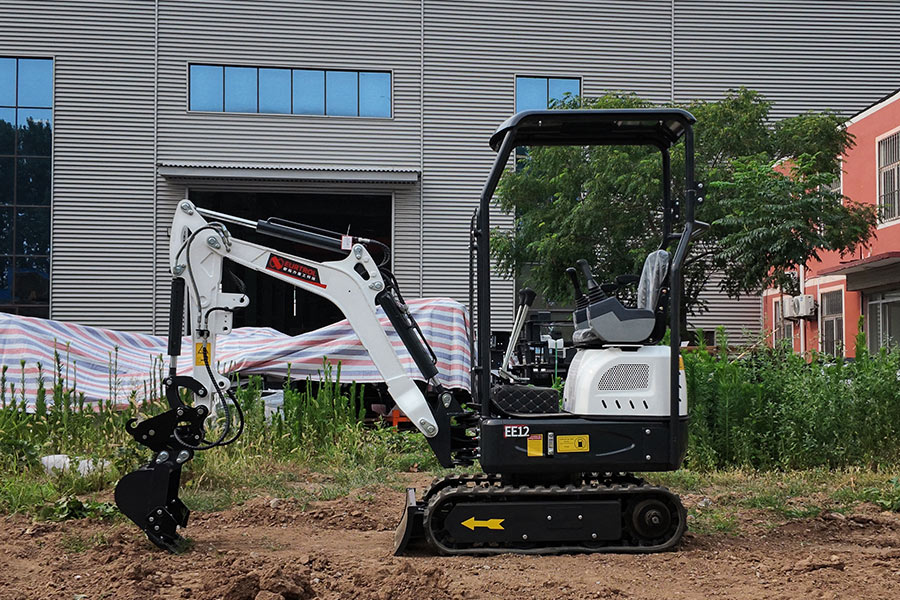

EE12 Mini Excavator | 1.2-Ton Compact Digger with 850mm Slim Profile & Briggs & Stratton Power
1,200kg Operating Mass | 850mm Ultra-Narrow Width | 1,750mm Max Dig Depth | Briggs & Stratton Gas / KOOP Diesel
Why Hire Fleets & Contractors Choose the EE12 Compact Digger
- Rare 850mm Ultra-Slim Profile in 1.2-Ton Class: Delivering the robust ground anchoring and 15 kN drawbar traction of a 1,200 kg machine, the EE12 features a remarkable 850 mm narrow chassis width—effortlessly fitting through tight garden gates and pedestrian passages where ordinary 1.2-ton machines cannot pass.
- Premium Briggs & Stratton XR2100 Gas Powerplant: Equipped with the globally recognized American brand Briggs & Stratton XR2100 gasoline engine (10.1 kW @ 3600 rpm, EPA 4/Euro 5), offering snappy throttle response, simple maintenance, and worldwide dealership parts availability alongside proven KOOP diesel alternatives.
- Deep 1.75m Trenching Geometry: With a 1,750 mm maximum vertical digging depth and 1,850 mm dumping height, operators can dig deep utility lines, foundation perimeters, and drainage mains while easily loading high-sided transport tippers.
- Dual 45° Offset Boom & 660mm Short Tail: Bilateral 45° swing boom articulation (320 mm bilateral offset) paired with a compact 660 mm tail swing allows true boundary-line trenching right flush against standing property walls, fence lines, and hedges.
| Model | EE12 |
| Operating Weight | 1200 kg (1.2 Ton) |
| Chassis Overall Width | 850 mm |
| Bucket Capacity / Width | 0.025 m³ / 400 mm |
| Engine Options | Briggs & Stratton XR2100 (Gasoline) / KOOP KD192FE (Diesel) |
| Max. Digging Depth | 1750 mm (1.75 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 1200 kg |
| Bucket Capacity | 0.025 m³ |
| Fuel Tank Capacity | 5 L |
| Engine | |
| Engine Model | a. KOOP KD192FE (China Stage II) b. KOOP KD192FE-E5 (EURO 5) c. Briggs & Stratton XR2100 (EURO 5 / EPA 4) |
| Displacement | a 0.499, b 0.499, c 0.42 L |
| Rated Power/rpm | a 7.6/3000, b 7/3000, c 10.1/3600 kw/rpm |
| Max. Torque | a 32/2200, b 32/2200, c 28.48/2600 N.m/rpm |
| Oil Capacity | a 1.65, b 1.65, c 1.1 L |
| Type | a Diesel, 1-Cylinder, Air Cooling b Diesel, 1-Cylinder, Air Cooling c Gasoline, 1-Cylinder, Air Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 2.5 km/h |
| Rotating Speed | 9 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 9 kN |
| Bucket Arm Digging Force | 5.5 kN |
| Max. Traction Force | 15 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 180*72*37 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 28 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Gear Pump |
| Max. Working Pressure | 16 MPa |
| Hydraulic Flow | 21 L/min |
| Rotary Motor Type | Hydraulic Orbit Motor |
| Walking Motor Type | Hydraulic Orbit Motor |
| Main Valve Type | Hydraulic Eight-way Valve |
| Hydraulic Oil Tank Capacity | 15 L |
| Main Dimensions | |
| A. Overall Length | 3000 mm |
| B. Track Length | 1220 mm |
| C. Height to Boom Top | 1050 mm |
| D. Chassis Width | 850 mm |
| E. Overall Height | 2200 mm |
| F. Ground Clearance | 410 mm |
| G. Mini Ground Clearance | 160 mm |
| H. Tail Turning Radius | 660 mm |
| I. Wheel Base | 900 mm |
| J. Track Width | 180 mm |
| K. Bucket Width | 400 mm |
| L. Track Height | 320 mm |
| Operating Range | |
| 1. Max. Digging Height | 2750 mm |
| 2. Max. Dumping Height | 1850 mm |
| 3. Max. Digging Depth | 1750 mm |
| 4. Max. Digging Radius on Ground | 2960 mm |
| 5. Min. Turning Radius | 1300 mm |
| 6. Dozer Blade Max. Lifting Height | 120 mm |
| 7. Dozer Blade Max. Lowering Depth | 180 mm |
| 8. Max. Digging Radius | 3050 mm |
| 9. Max. Vertical Digging Depth | 1600 mm |
| RS. Boom Right Swing Offset | 320 mm |
| LS. Boom Left Swing Offset | 320 mm |
| RA. Boom Right Swing Angle | 45.0° |
| LA. Boom Left Swing Angle | 45.0° |
✔ 850mm Gate-Pass Stance with 1.2-Ton Stability: At only 850 mm wide, the EE12 glides through tight property gates and side passages, while its 1,200 kg deadweight provides heavy stability when digging tough clay.
✔ Global Brand Briggs & Stratton Engine: The optional Briggs & Stratton XR2100 gas engine ensures instant cold starts, quiet residential noise levels, and immediate spare parts availability at lawn and equipment dealerships worldwide.
✔ Full 1.75m Vertical Trenching Depth: Reaching 1,750 mm deep with 9 kN of bucket breakout force, it makes quick work of domestic plumbing tie-ins, electrical trenches, and perimeter drainage channels.
✔ Trailer Hauling Without CDL Restrictions: Weighing 1,200 kg with an overall transport length of 3.0 meters, it straps down securely onto standard single or tandem-axle plant trailers behind any work pickup.
