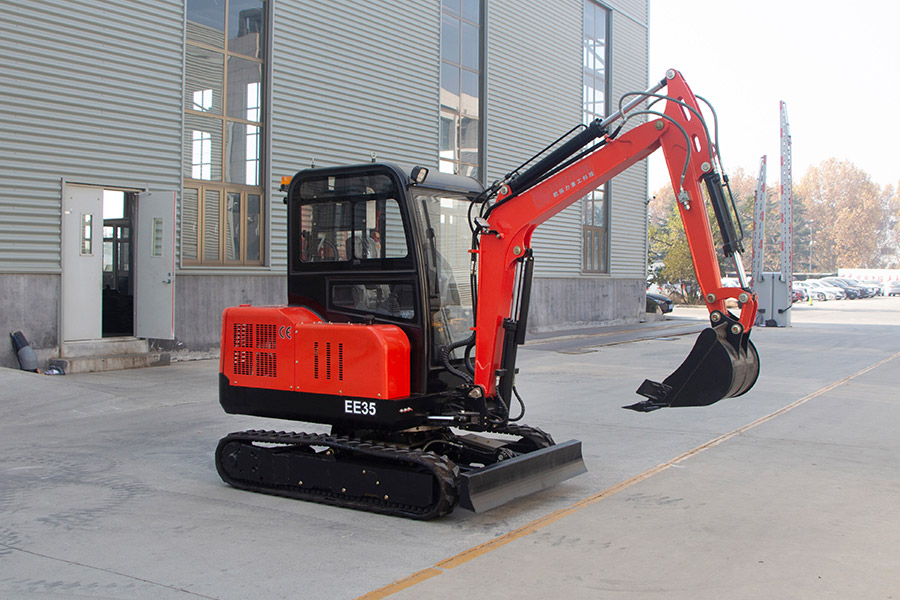

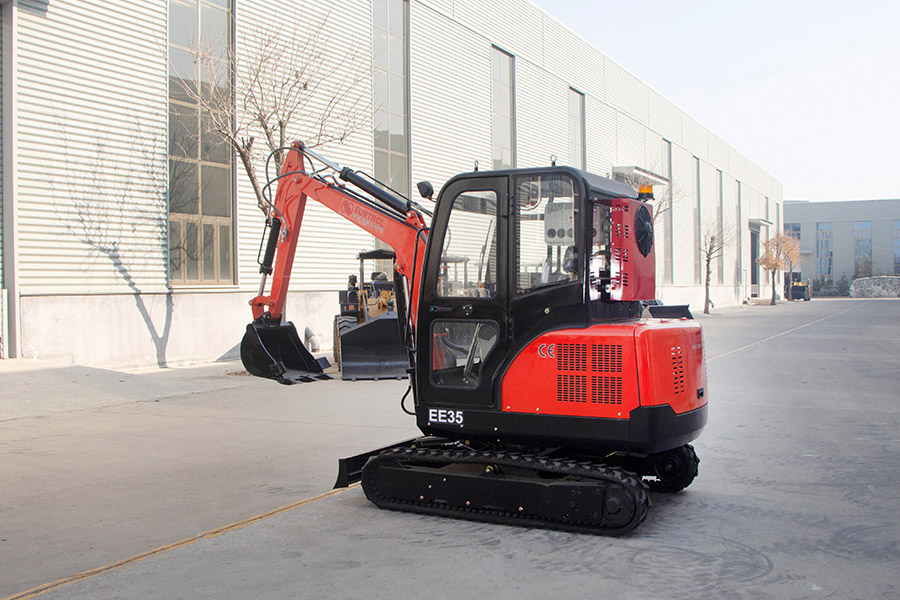

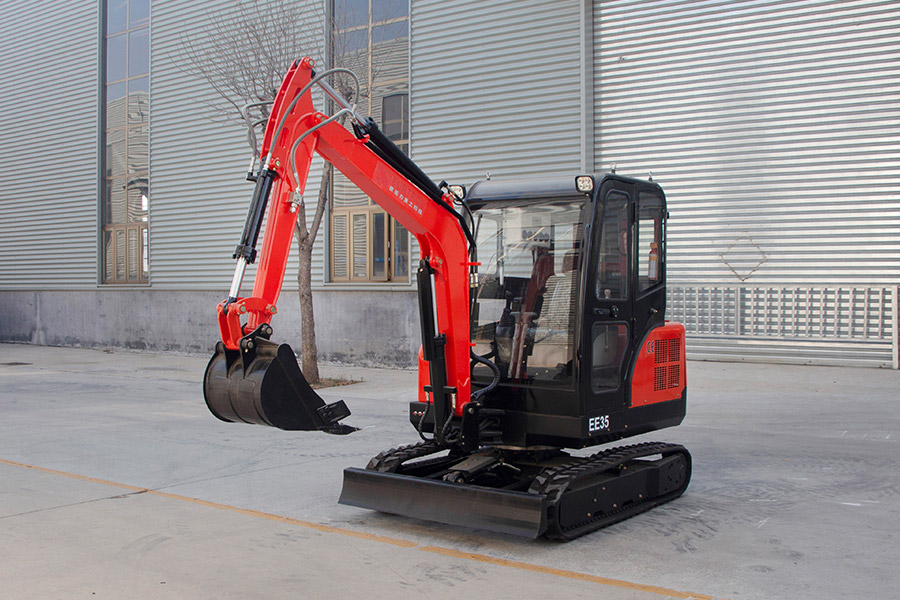

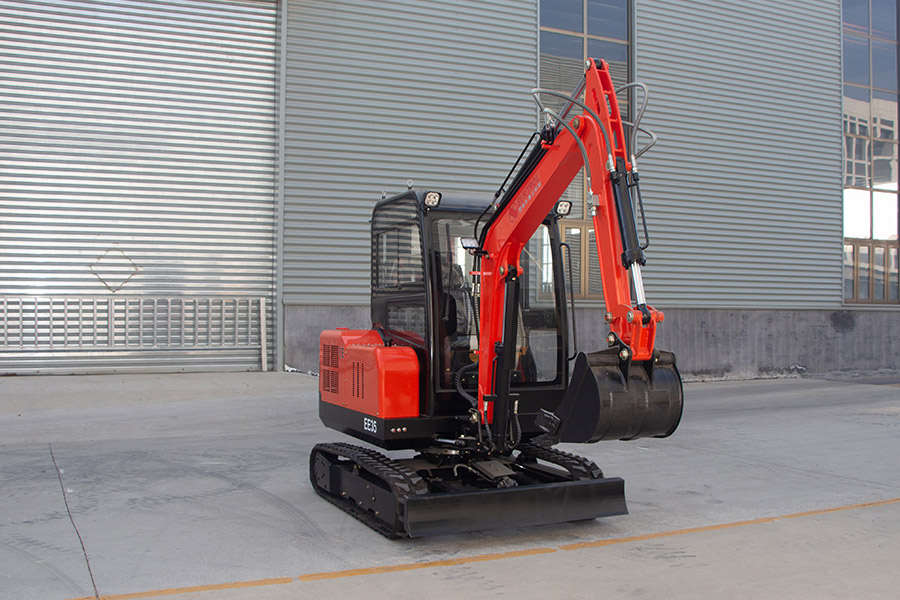

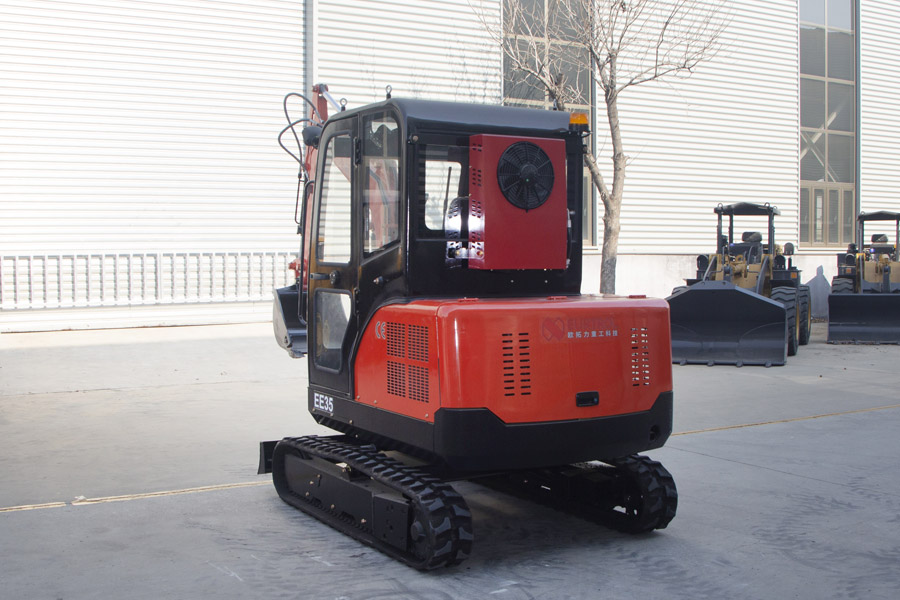

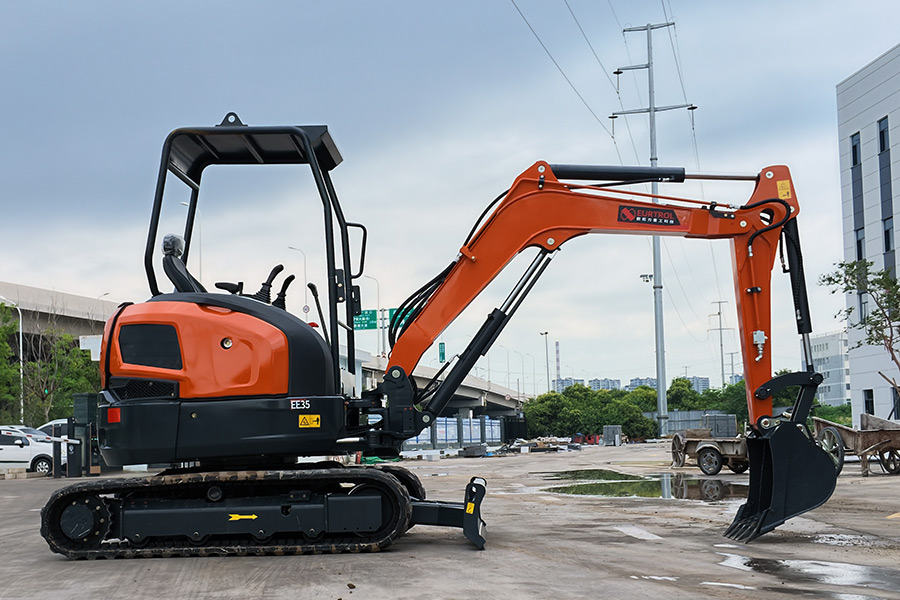

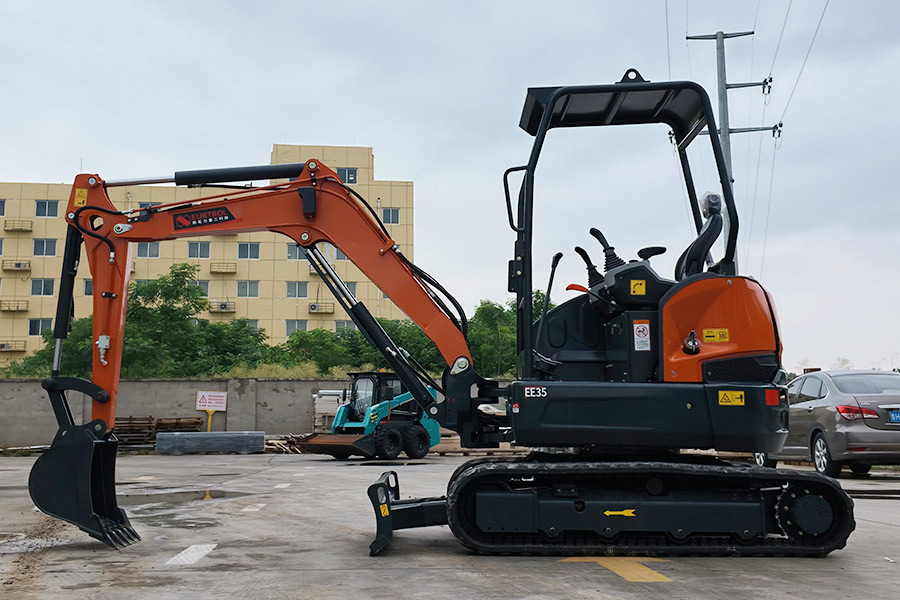

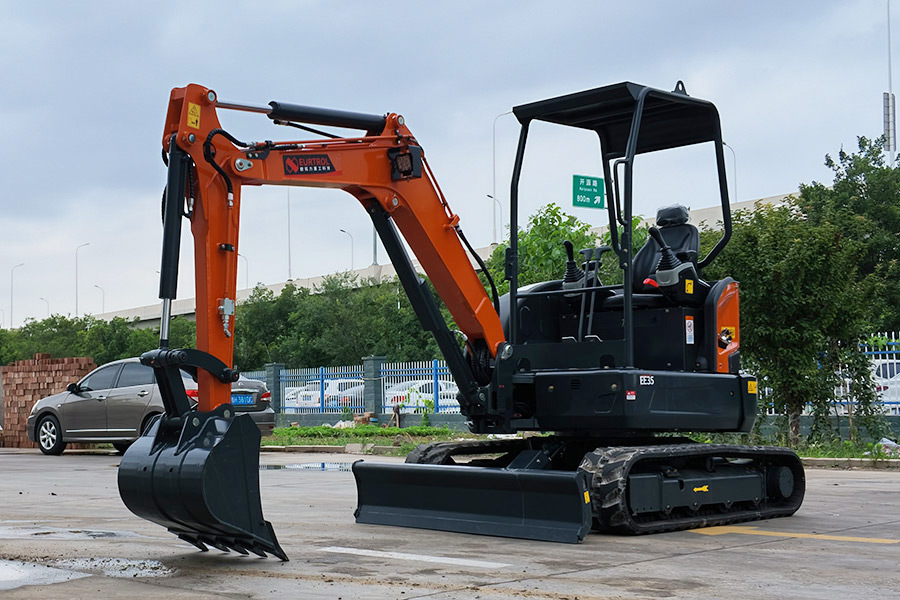

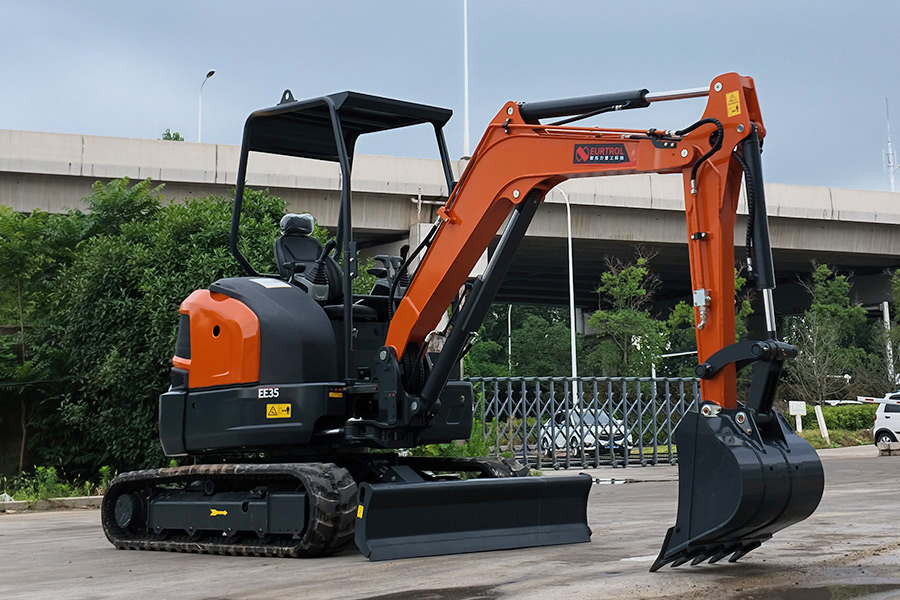

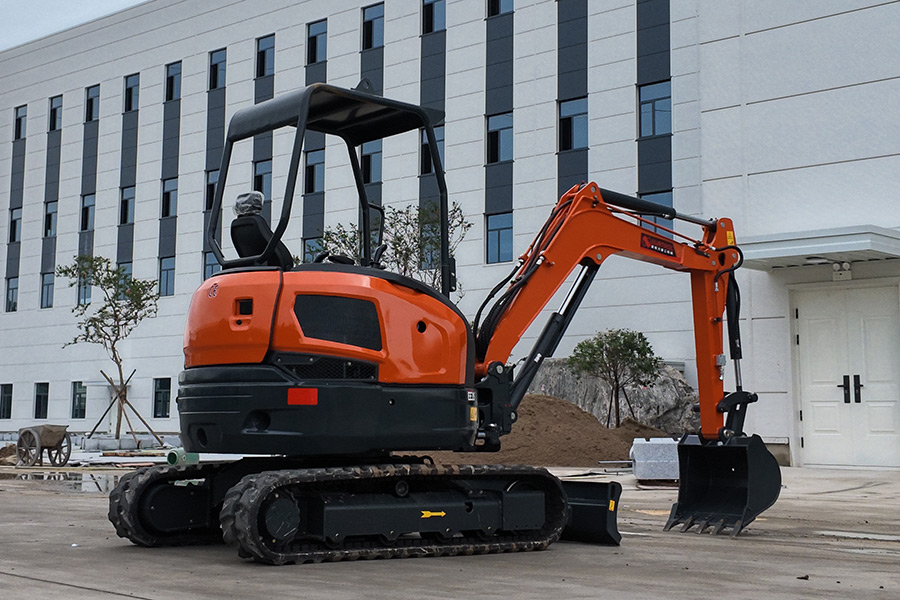

EE35 Mini Excavator
Operation weight: 3500Kg
Bucket capacity: 0.08cbm
Rated power: 17.1Kw
EE35 Compact Excavator | 3.5-Ton Heavy Mini Digger & Kubota D1703 3-Cylinder Power
3,500kg Operating Mass | 0.08m³ Bucket | Kubota D1703 Diesel (EPA/Euro 5) | 2,824mm Dig Depth | Variable Piston Hydraulics
Why Civil Contractors & Fleets Choose the EE35 Compact Excavator
- Premium Kubota D1703 3-Cylinder Diesel: Powered by the globally acclaimed Kubota D1703 liquid-cooled engine (1.647L displacement, 17.1 kW @ 2200 rpm), delivering a stout 97.4 N·m of peak torque at 1500 rpm for fuel-efficient, high-reserve lugging under tough clay and hardpan conditions.
- Load-Sensing Variable Piston Hydraulics: Equipped with a variable displacement piston pump delivering 99 L/min at 23 MPa through a full hydraulic load-sensitive main valve, ensuring ultra-smooth multi-function feathering and optimal hydraulic efficiency without power waste.
- Substantial 2.82m Trenching & 3.2m Dumping Reach: Achieves a 2,824 mm vertical digging depth and 3,200 mm dumping clearance backed by 29.5 kN bucket digging force and 18.1 kN arm force, easily loading commercial highway dump trucks and cutting deep utility pipelines.
- Tight 905mm Tail Profile & Dual 49° Swing Boom: Combines a short 905 mm tail swing radius with independent 49° left/right boom deflection (405 mm left / 320 mm right offset), allowing operators to execute zero-clearance boundary digging alongside brick walls, boundary fences, and highway curbs.
| Model | EE35 |
| Operating Weight | 3500 kg (3.5 Ton) |
| Chassis Overall Width | 1550 mm |
| Bucket Capacity / Breakout Force | 0.08 m³ / 29.5 kN |
| Engine Configuration | KUBOTA D1703 (3-Cylinder Water-Cooled, EURO 5 / EPA 4) |
| Max. Digging Depth | 2824 mm (2.82 m) |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 3500 kg |
| Bucket Capacity | 0.08 m³ |
| Fuel Tank Capacity | 33 L |
| Engine | |
| Engine Model | KUBOTA D1703 (EURO 5 / EPA 4) |
| Displacement | 1.647 L |
| Rated Power / Speed | 17.1 kW @ 2200 rpm |
| Max. Torque | 97.4 N.m @ 1500 rpm |
| Engine Oil Capacity | 7 L |
| Engine Type | Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 2.5 – 4.5 km/h (2-Speed) |
| Rotating Speed | 9 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 29.5 kN |
| Bucket Arm Digging Force | 18.1 kN |
| Max. Traction Force | 27.1 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 300*52.5*84 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 33.3 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Variable Piston Pump |
| Max. Working Pressure | 23 MPa |
| Hydraulic Flow | 99 L/min |
| Rotary Motor Type | Hydraulic Piston Motor |
| Walking Motor Type | Hydraulic Inner High-low Speed Piston Motor |
| Main Valve Type | Full Hydraulic Load-sensitive Valve |
| Hydraulic Oil Tank Capacity | 14.5 L |
| Main Dimensions | |
| a. Wheel Base | 1623 mm |
| b. Track Length | 2077 mm |
| c. Ground Clearance | 295 mm |
| d. Tail Turning Radius | 905 mm |
| e. Chassis Width | 1550 mm |
| f. Track Width | 300 mm |
| g. Max. Ground Clearance | 515 mm |
| h. Overall Length | 4561 mm |
| j. Overall Height | 2539 mm |
| q. Bucket Width | 665 mm |
| Operating Range | |
| A. Max. Digging Radius on Ground | 4960 mm |
| B. Max. Digging Radius | 4835 mm |
| C. Max. Digging Depth | 2824 mm |
| D. Max. Digging Height | 4600 mm |
| E. Max. Dumping Height | 3200 mm |
| F. Max. Vertical Digging Depth | 2196 mm |
| G. Min. Turning Radius | 1960 mm |
| H. Dozer Blade Max. Lifting Height | 358 mm |
| I. Dozer Blade Max. Lowering Depth | 323 mm |
| RS. Boom Right Swing Offset | 320 mm |
| LS. Boom Left Swing Offset | 405 mm |
| RA. Boom Right Swing Angle | 49.0° |
| LA. Boom Left Swing Angle | 49.0° |
✔ Deep 2.82m Foundation & Drainage Reach: Digs down to 2,824 mm with 29.5 kN of breakout tearing force, allowing contractors to trench municipal water lines, foundation footings, and septic tanks in fewer passes.
✔ Kubota 3-Cylinder Industrial Reliability: The 1.647L Kubota D1703 engine delivers heavy low-rpm torque (97.4 N·m) with outstanding fuel efficiency, supported by a worldwide dealership network and ready spare parts supply.
✔ Full Load-Sensing Variable Hydraulics: A 99 L/min variable displacement piston pump matched with load-sensitive valve control provides feather-light combined controls and plenty of auxiliary flow for breakers, augers, and tiltrotators.
✔ High-Speed 4.5 km/h 2-Speed Travel: Dual-speed high/low travel motors (2.5–4.5 km/h) alongside 27.1 kN tractive force accelerate cross-site travel, backfilling passes, and grade climbing up to 30°.
Company Profile
Eurtrol — Your Trusted Partner in Heavy Machinery
Established in 2010, Eurtrol is a leading manufacturer specializing in high-performance mini excavators, forklifts, and drilling rigs. With a 12,000㎡ facility and a 185-strong expert team, we deliver durable, professional-grade equipment to clients in over 120 countries, empowering success across construction, landscaping, and agriculture sectors worldwide.
