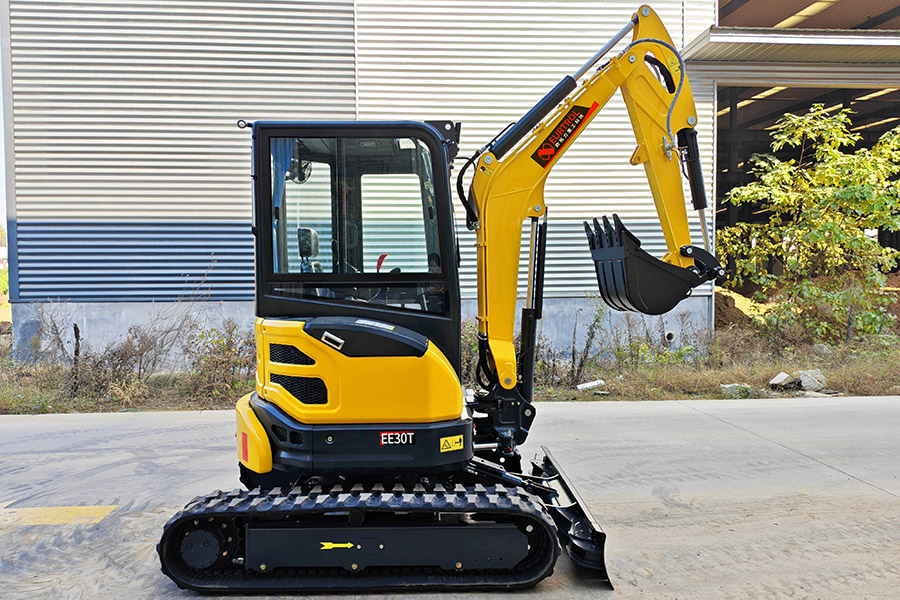

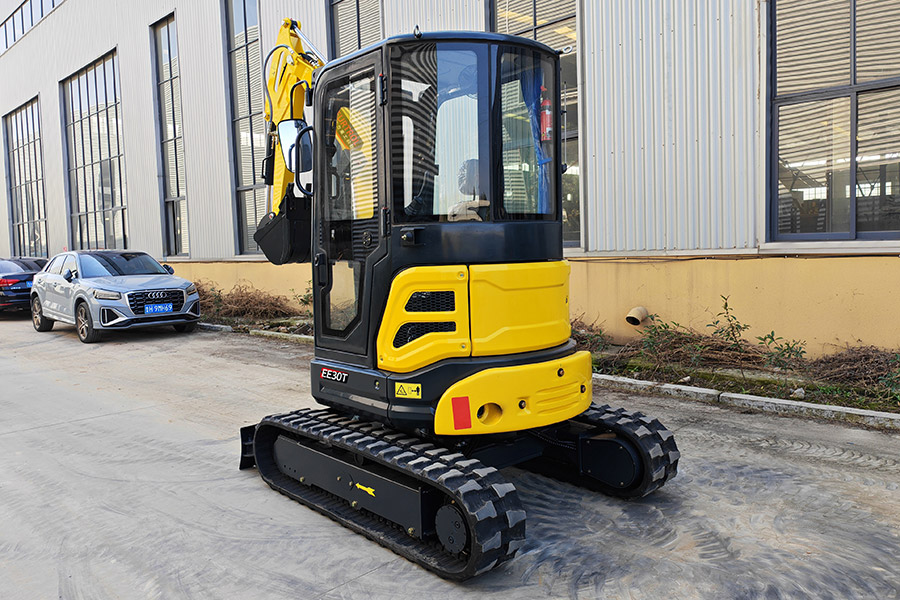

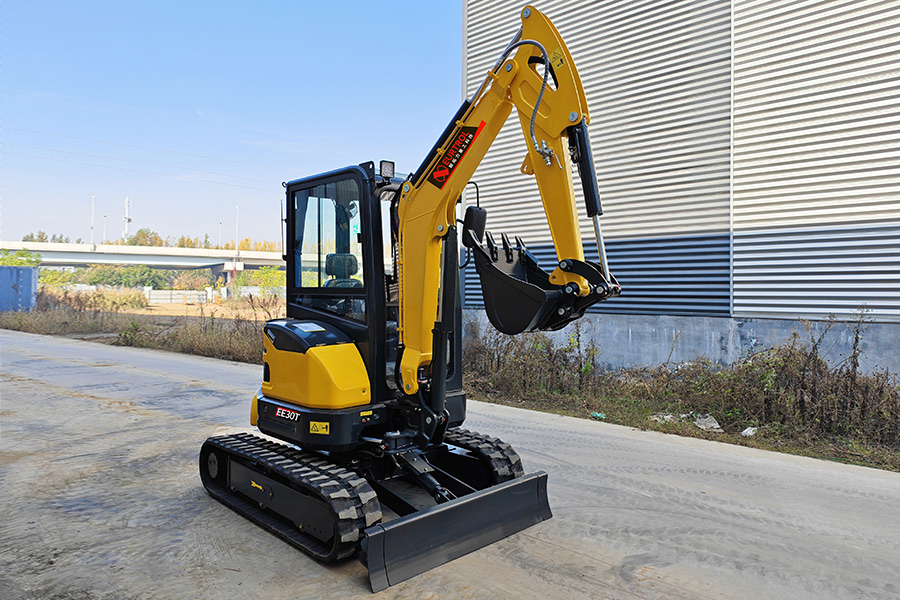

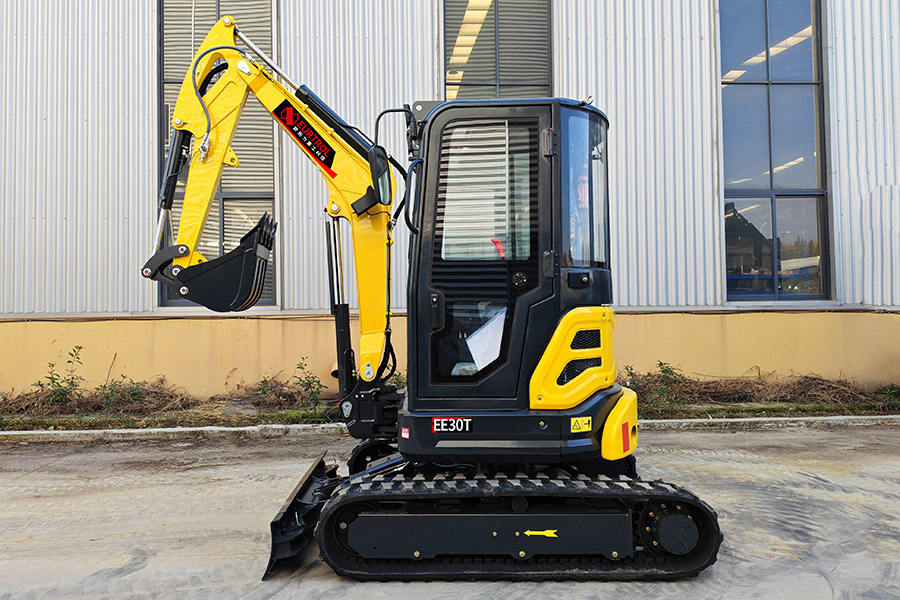

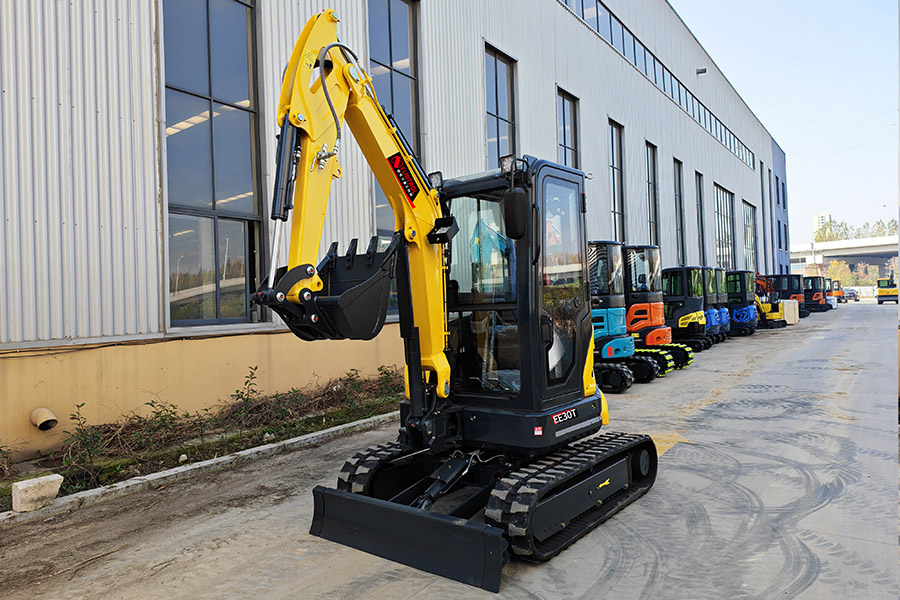

EE30T Cabin Mini Excavator
Operation weight: 3000Kg
Bucket capacity: 0.068cbm
Rated power: 15.2Kw
EE30T Enclosed Cab Mini Excavator | 3.0-Ton All-Weather Digger & Yanmar 380F Diesel Power
3,000kg Operating Mass | Factory Sealed Weatherproof Cab | Yanmar 380F Diesel (EPA/Euro 5) | 1370–1570mm Retractable Tracks | 2,590mm Dig Depth
Why Commercial Contractors Choose the EE30T Full Cab Excavator
- All-Weather Factory-Sealed Operator Cabin: Equipped with a fully enclosed climate-controlled cab, the EE30T shields operators from torrential rain, freezing cold, airborne dust, and high jobsite decibel levels—ensuring maximum operator comfort, safety, and non-stop productivity across full-day shifts.
- Premium Yanmar 380F 3-Cylinder Diesel Engine: Powered by the globally renowned Yanmar 380F liquid-cooled diesel (1.267L displacement, 15.2 kW @ 2500 rpm, 67.4 N·m torque), certified to EURO 5 and EPA Tier 4 standards, providing ultra-low vibration, fuel efficiency, and global dealer parts backup.
- Hydraulic Retractable Undercarriage (1,370mm – 1,570mm): Retract the tracks hydraulically down to 1,370 mm to negotiate narrow access paths, gates, and transport decks, then expand out to 1,570 mm for rock-solid stability during heavy excavation passes.
- 24.5 MPa Load-Sensing Variable Piston Hydraulics: Features a high-pressure variable piston pump delivering 70 L/min at 24.5 MPa through a full hydraulic load-sensitive main valve, ensuring silky-smooth multi-function joystick feathering and ample auxiliary flow for hydraulic breakers and augers.
| Model | EE30T (Enclosed Cab Edition) |
| Operating Weight | 3000 kg (3.0 Ton) |
| Cabin Configuration | Fully Enclosed Weather-Shield Operator Cabin |
| Chassis Overall Width | 1370 – 1570 mm (Hydraulic Retractable) |
| Engine Configuration | YANMAR 380F (3-Cylinder Water-Cooled, EURO 5 / EPA 4) |
| Max. Digging Depth / Dumping Height | 2590 mm / 3060 mm |
⬇️ View Full Technical Parameters & Dimensions ⬇️
| Specification | |
| Operating Weight | 3000 kg |
| Cabin Type | Fully Enclosed Weatherproof Cab |
| Bucket Capacity | 0.068 m³ |
| Fuel Tank Capacity | 20 L |
| Engine | |
| Engine Model | YANMAR 380F (EURO 5 / EPA 4) |
| Displacement | 1.267 L |
| Rated Power / Speed | 15.2 kW @ 2500 rpm |
| Max. Torque | 67.4 N.m @ 1800 rpm |
| Engine Oil Capacity | 3.4 L |
| Engine Type | Diesel, 3-Cylinder, Water Cooling |
| Speed / Digging Force | |
| Max. Travel Speed | 2.0 – 3.5 km/h (2-Speed) |
| Rotating Speed | 10 rpm |
| Max. Gradeability | 30° |
| Bucket Digging Force | 20 kN |
| Bucket Arm Digging Force | 13.5 kN |
| Max. Traction Force | 23 kN |
| Walking Unit | |
| Track Material | Rubber |
| Track Model | 300*52.5*80 |
| Track Tensioning Device Type | Grease Tensioning Device |
| Ground Pressure | 27 kPa |
| Hydraulic System | |
| Main Pump Type | Hydraulic Variable Piston Pump |
| Max. Working Pressure | 24.5 MPa |
| Hydraulic Flow | 70 L/min |
| Rotary Motor Type | Hydraulic Piston Motor |
| Walking Motor Type | Hydraulic Inner High-low Speed Piston Motor |
| Main Valve Type | Full Hydraulic Load-sensitive Valve |
| Hydraulic Oil Tank Capacity | 18 L |
| Main Dimensions | |
| a. Wheel Base | 1520 mm |
| b. Track Length | 1960 mm |
| c. Ground Clearance | 500 mm |
| d. Tail Turning Radius | 700 mm |
| e. Chassis Width | 1370 – 1570 mm (Adjustable) |
| f. Track Width | 300 mm |
| g. Track Height | 570 mm |
| h. Overall Length | 4100 mm |
| j. Overall Height | 2440 mm |
| q. Bucket Width | 515 mm |
| Operating Range | |
| A. Max. Digging Radius on Ground | 4640 mm |
| B. Max. Digging Radius | 4520 mm |
| C. Max. Digging Depth | 2590 mm |
| D. Max. Digging Height | 4370 mm |
| E. Max. Dumping Height | 3060 mm |
| F. Max. Vertical Digging Depth | 2110 mm |
| G. Min. Turning Radius | 2250 mm |
| H. Dozer Blade Max. Lifting Height | 260 mm |
| I. Dozer Blade Max. Lowering Depth | 300 mm |
| RS. Boom Right Swing Offset | 325 mm |
| LS. Boom Left Swing Offset | 535 mm |
| RA. Boom Right Swing Angle | 50.0° |
| LA. Boom Left Swing Angle | 65.0° |
✔ Year-Round Cabin Comfort & Low Fatigue: The sealed, climate-ready enclosed cabin keeps the operator dry, warm in winter, cool in summer, and isolated from dust and noise, significantly reducing fatigue during continuous 8-hour excavation shifts.
✔ Retractable Tracks for High-Stance Stability: Hydraulically narrows to 1,370 mm to pass narrow property boundaries or fit comfortably onto plant trailers, expanding out to 1,570 mm for superior anti-roll footing when swinging heavy loads.
✔ Deep 2.59m Foundation & Drainage Reach: Digs down to 2,590 mm with 20 kN bucket breakout power and a massive 3,060 mm dumping height, easily clearing foundation footings, sewer connections, and high-sided transport tippers.
✔ High Undercarriage Clearance (500mm): Features an exceptional 500 mm frame clearance and low 27 kPa track ground pressure, preventing undercarriage hanging over large curbs, tree stumps, and deep jobsite mud.
